SCT0600-020-PLH-P-PH-CZ - Datasheet

MBA

Category Information

Screws - Self Tapping - Hard or Soft Plastics - Pan Head

Pan Head Hard or Soft Plastics Self Tapping Screws. Tri-Lobe Course Thread Plastic Threading Screws

  • Thread cutting screws for plastics
  • Be sure to select correct screw for hard or soft plastic threadcutting

Product Data

  • Approx Diameter : 6.0 mm
    (Equiv. 0.236 in.)
  • Thread Length (l) 20 mm
    (Equiv. 0.787 in.)
  • Thread Pitch 2.12 mm
  • Drive Type Pozi Drive
  • Head Diameter (dk) 12.0 mm
  • Type Course Threadcutting For Hard or Soft Plastics
  • Material Zinc Plated and Waxed
Country of Origin: TW

Product Compliance and Data

Additional Resources

View full details

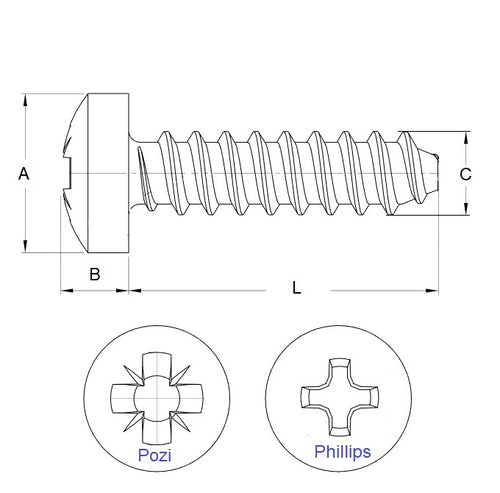

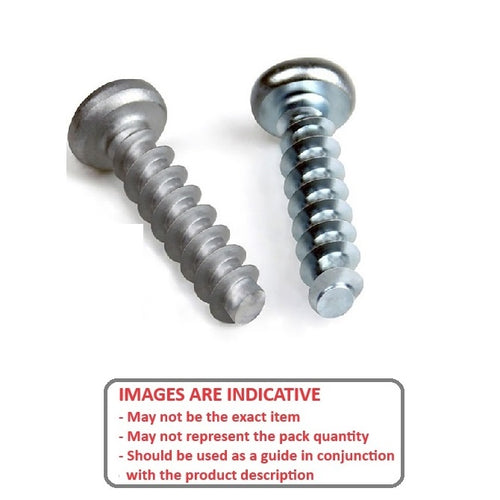

SCT0600-020-PLH-P-PH-CZDiagramSCT0600-020-PLH-P-PH-CZImage
