NART6UUR - Datasheet
MBA
Category Information
Rollers - Track - With Inner RaceWith Inner Race Track Rollers. This is the main category in this series
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

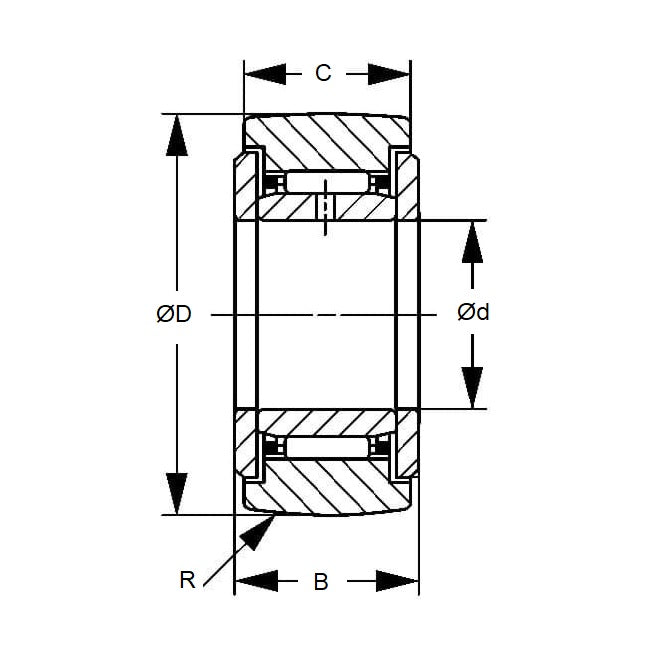

- ID (d)
:
6.00
mm
(Equiv. 0.236 in.) - OD (D)
19.00
mm
(Equiv. 0.748 in.) - Width (C)
11.00
mm
(Equiv. 0.433 in.) - Inner Ring Width (B) 12.00 mm
- OD Type Radius (500mm)
- Dynamic Load Rating 430.00 kgf
- Static Load Rating 480.00 kgf
- Closures Shields with Seal
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Nachi NART-6UUR
- SKF NATR6-PP
- NATR6PP
- NART6UUR
