W0060-CU-012-030-A - Datasheet
MBA
Category Information

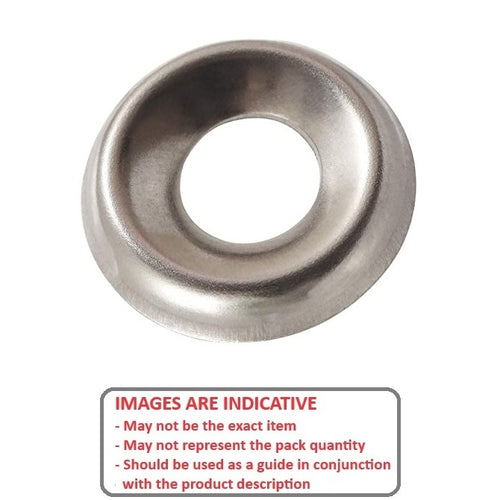

Washers - Cup - AluminiumAluminium Cup Washers. Aluminium cup washer selection.
- Washers with a concave, cup-like shape, used with countersunk screws to provide a neat, finished look and evenly distribute the fastener's load.
- Protects softer materials from damage caused by the fastener head.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

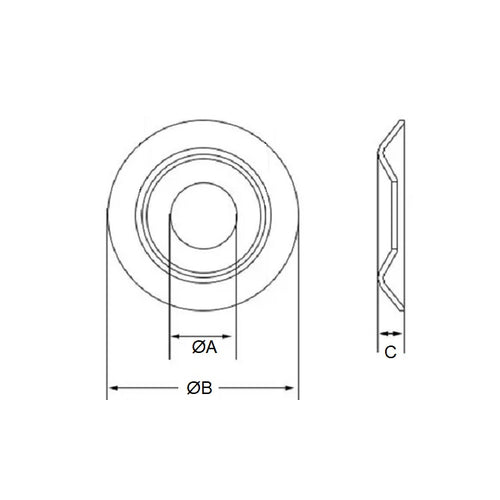

- Nominal Inside Diameter (A)
:
6.00
mm
(Equiv. 0.236 in.) - Nominal Outside Diameter (B)
12.00
mm
(Equiv. 0.472 in.) - Nom. Section (C)
3.00
mm
(Equiv. 0.118 in.) - Size M6
- Material Aluminium
