KF061-083-6L-ST - Datasheet
MBA
Category Information

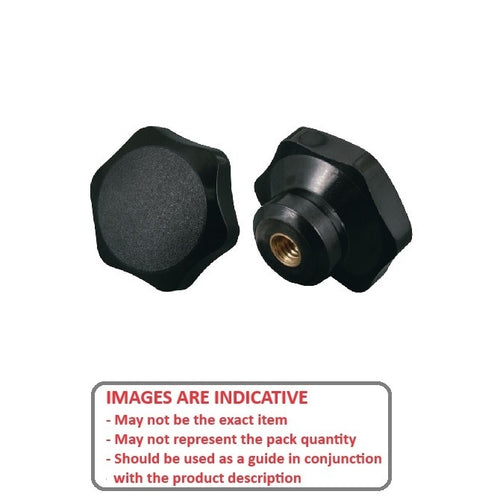

Knobs - Lobe - Six Lobe - Female - StandardStandard Female Six Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data

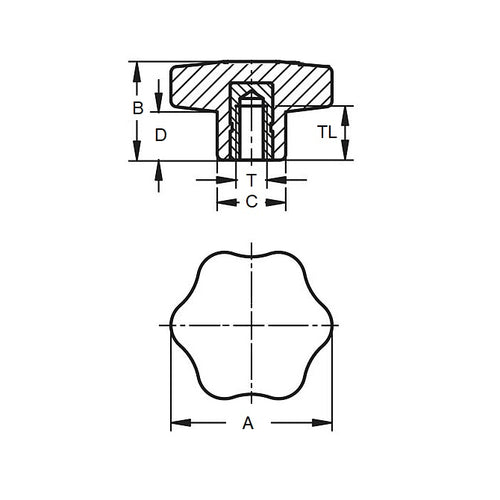

- Thread Size : 6.10 Unthreaded Hole
- Head Diameter (A)
83.06
mm
(Equiv. 3.27 in.) - Thread Length
23.1
mm
(Equiv. 0.909 in.) - Colour Black
- Hub Diameter (C) 24.13 mm
- Hub Length (F) 40.13 mm
- Knob Height (B) 39.88 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- KHN-20
- KHN20
