HF1-6M-A - Datasheet
MBA
Category Information

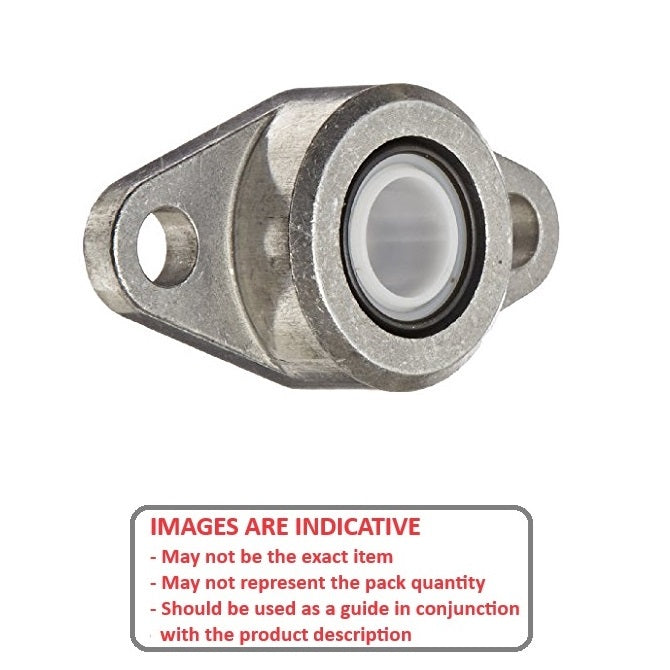

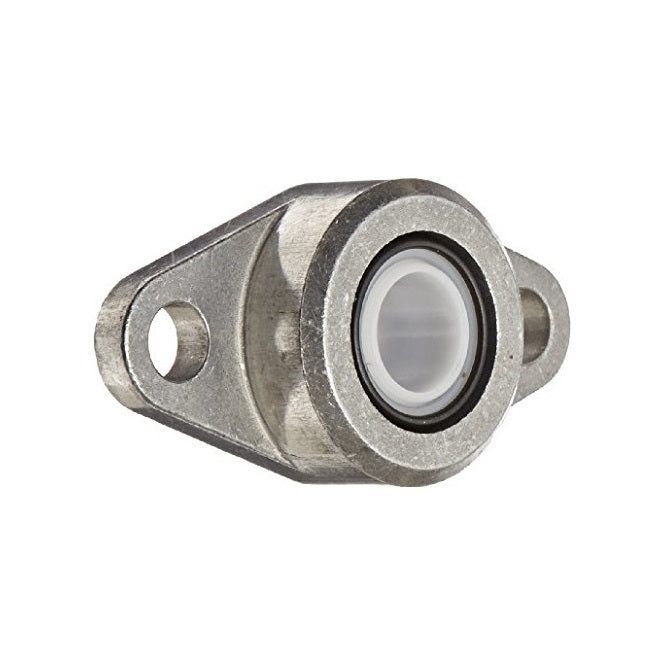

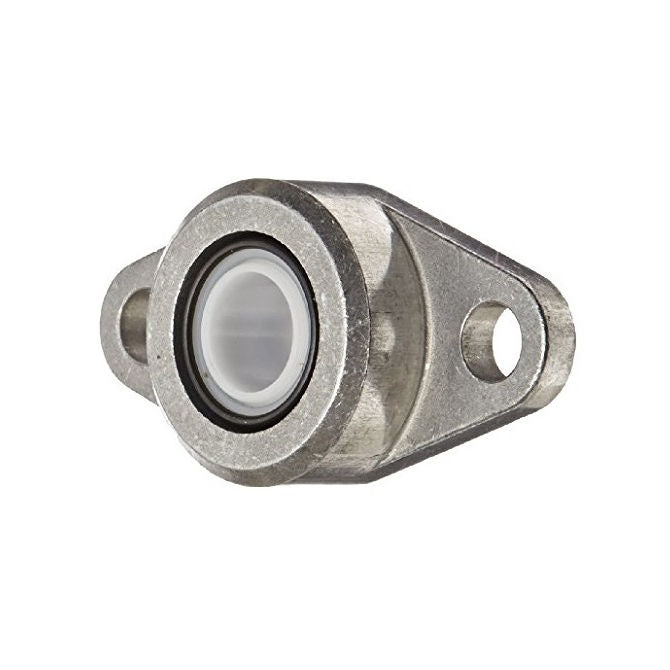

Housing and Bearing Assembly - Flanged 2 Bolt - Self Aligning - PlasticPlastic Self Aligning Flanged 2 Bolt Housing and Bearing Assembly. This is the main category in this series
- Bearing housing assemblies combine matching parts already assembled. Bearings in this range refer to either ball bearings or plain bearings. Refer to the listings for each type.
- Flanged mounting allows for a shaft to run through a bulkhead to which the housing is mounted, or to have a shaft mounted perpendicular to a metal frame.
- +/- 5% Static Alignment
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Shaft Size
:
6.000
mm

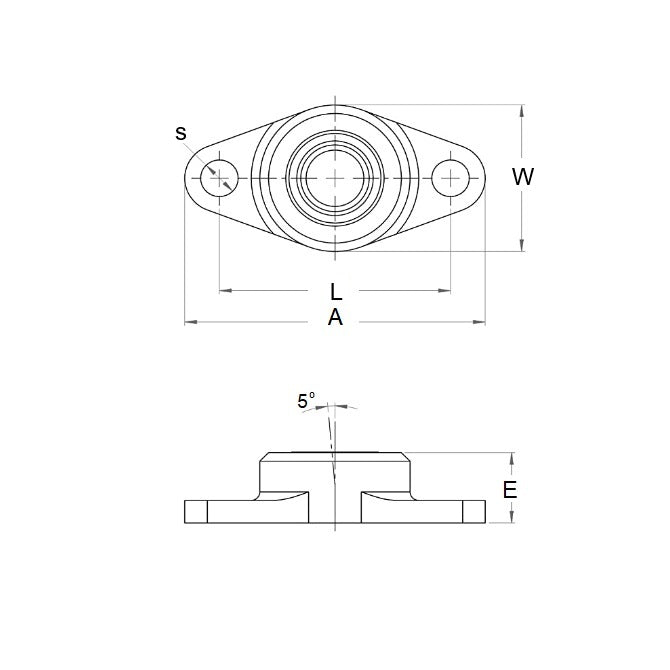

(Equiv. 0.236 in.) - Width (W)
32.00
mm
(Equiv. 1.26 in.) - Overall Length (A)
41.50
mm
(Equiv. 1.634 in.) - Overall Height (E) 19.00 mm
- Min to Max Shaft Dia. 6.020 to 6.070 mm
- Max. Radial Dynamic Load 383 N
- Bolt Hole Centres (L) 9.50 mm
- Max Speed 1591
- Material Delrin ™
