SHLD060-020-PH-S3 - Datasheet
MBA
Category Information

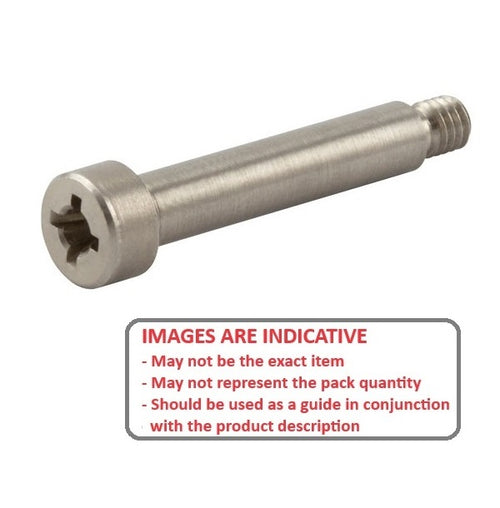

Screws - Shoulder - Phillips - StainlessStainless Phillips Shoulder Screws. 303 Stainless Steel
- Also known as Pivot Pin, Fulcrum Screw, Stripper Bolt, Stepped Screw and Shoulder Socket Cap Screw
Product Data

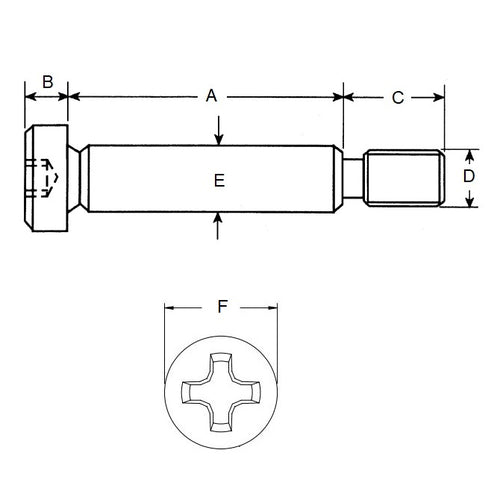

- Shoulder Diameter (D1)
:
6.000
mm
- 0.013 / - 0.038
(Equiv. 0.236 in.) - Shoulder Length (A)
20.000
mm
+ 0.013 / + 0.063
(Equiv. 0.787 in.) - Thread (D) M5x0.8
- Max. Thread Length (l) 6.00 mm
- Head Height (H) 5.00 mm
- Head Diameter (D) 10.00 mm
- Phillips Drive
- Philips Size 3
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- S706Y3M5020
