PSP-060-045H-S420 - Datasheet
MBA
Category Information

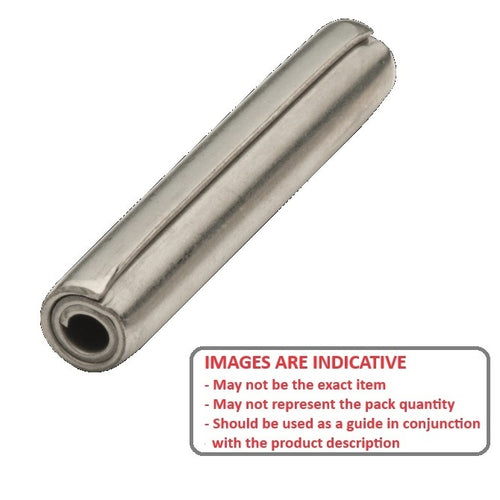

Pins - Coiled - Stainless - Heavy DutyHeavy Duty Stainless Coiled Pins. Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter
:
6.00
mm
(Equiv. 0.236 in.) - Length
45.00
mm
+/- 0.50
(Equiv. 1.772 in.) - Drill Size
6.00 - 6.15
mm
(Equiv. 0.236 in.) - Loose Diameter 6.18 - 6.40 mm
- ISO Heavy Duty ASME B18.8.2 / ISO 8748
- Hardness HV460-560
- Material Stainless Steel AISI 420C Oiled Rc 46-52
Product Compliance and Data
Additional Resources
Cross References
- NoCor SPCMSP-060-045H
- SPCMSP060045H
