RCL-060-141-ZD - Datasheet
MBA
Category Information

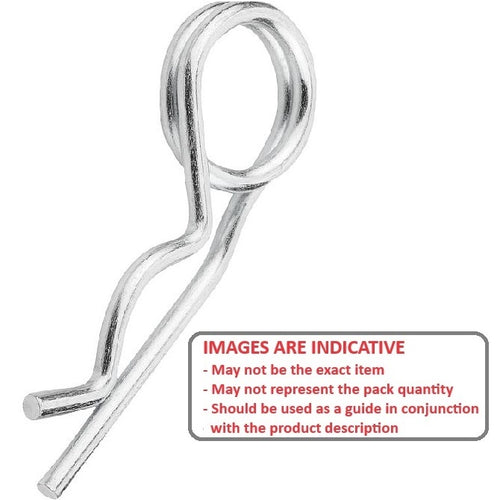

R Clips - Double Coil - SteelSteel Double Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- Material: Spring Wire
Product Data

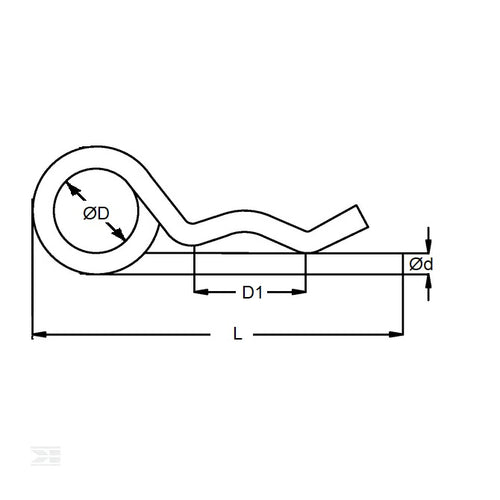

- Wire Thickness (d)
:
6.00
mm
(Equiv. 0.236 in.) - Length (L)
141.0
mm
(Equiv. 5.551 in.) - Material Zinc Plated
- Drill Hole Size 6.50 mm
- Inside Eye Diameter (D) 30.00 mm
- Shaft Size Range 24.00 to 36.00 mm
- Approx. Bridge Length (D1) 44 mm
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- RPD6-120
- RPD6120
