RCL-060-126-Z - Datasheet
MBA
Category Information

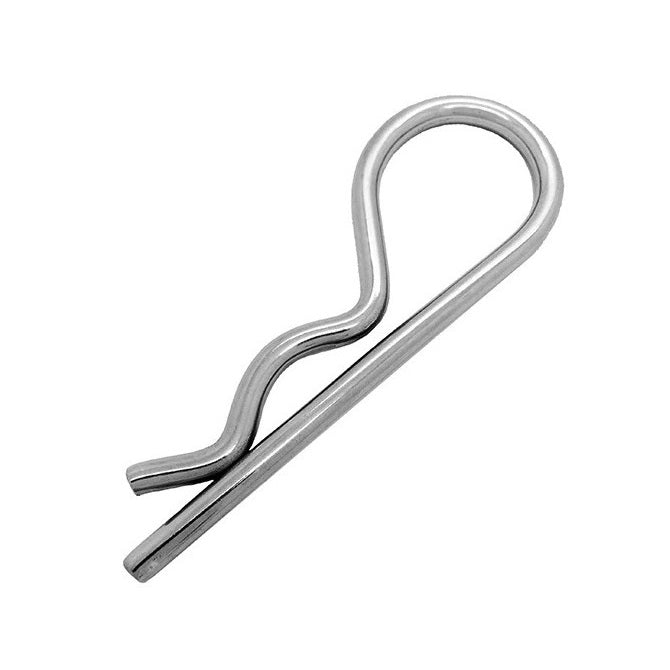

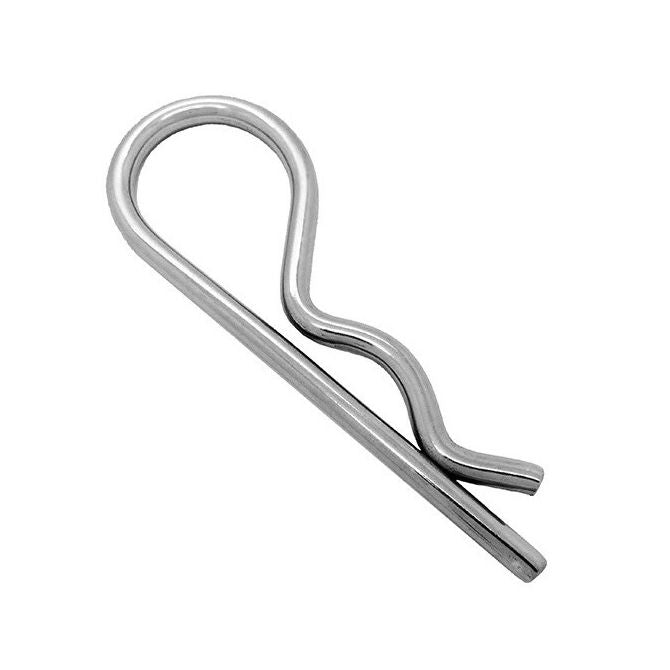

R Clips - Single Coil - SteelSteel Single Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- An expanded range may be available on special order. Please enquire.
- Material: Spring Wire
Product Data
- Wire Thickness (d)
:
6.00
mm
(Equiv. 0.236 in.) - Length (L)
126.0
mm
(Equiv. 4.961 in.) - Material Zinc Plated
- Drill Hole Size 7.00 mm
- Inside Eye Diameter (D) 30.00 mm
- Shaft Size Range 28.00 to 40.00 mm
- Approx. Bridge Length (D1) 44 mm
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 98350A950
- NoCor BPM-060-105
- RPS6-105
- RPS6105
- BPM060105
