RCL-060-108-S4 - Datasheet
Brighton Best
Category Information

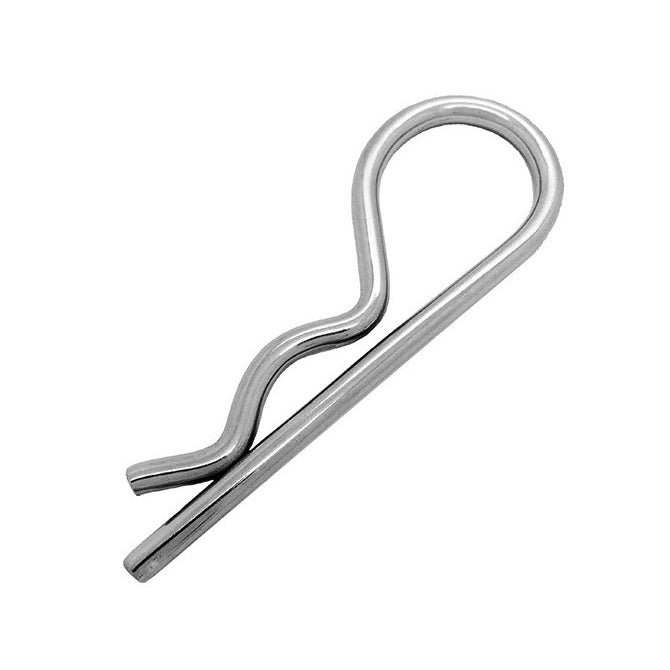

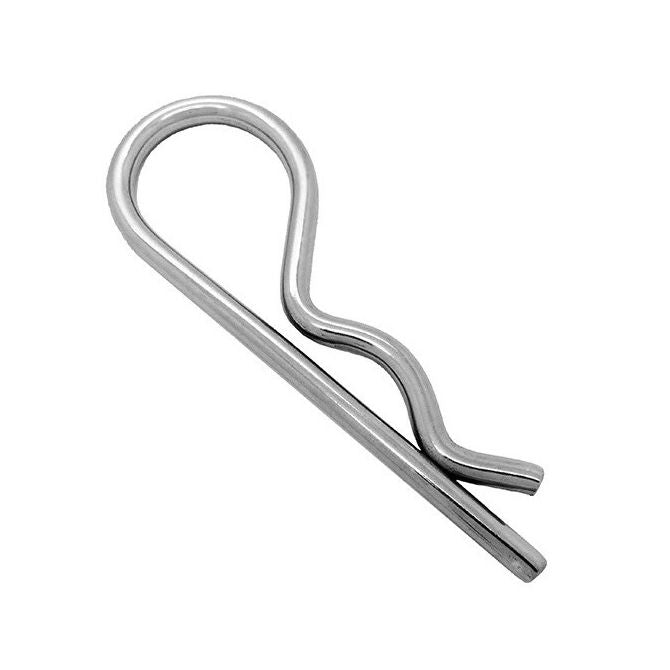

R Clips - Single Coil - Stainless SteelStainless Steel Single Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- An expanded range may be available on special order. Please enquire.
Product Data
- Wire Thickness (d)
:
6.00
mm
(Equiv. 0.236 in.) - Length (L)
108.3
mm
(Equiv. 4.264 in.) - Material 304 Stainless Steel
- Drill Hole Size 7.00 mm
- Inside Eye Diameter (D) 30.00 mm
- Shaft Size Range 28.00 to 40.00 mm
- Approx. Bridge Length (D1) 40 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best W22060
