Miniature Bearings Australia
QR-00600-080-N70-NSK - Datasheet
NSK
Category Information

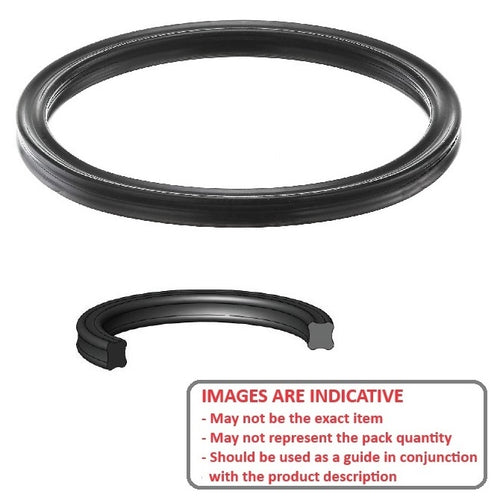

O-Rings - QuadQuad O-Rings. Quadrings or quattrorings reduce the amount of squeeze needed for positive seal, reducing friction and extending seal life.
- Temperature Range: -30 Deg C to +90 Deg C.
- Nitrile: Excellent resistance to mineral oil based fluids, hydrocarbon fuels, greases and water.
- Not suitable for aromatic hydrocarbons, chlorinated hydrocarbons, brake fluid and some fire resistant hydraulic fluids.
- Also known as quad rings
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

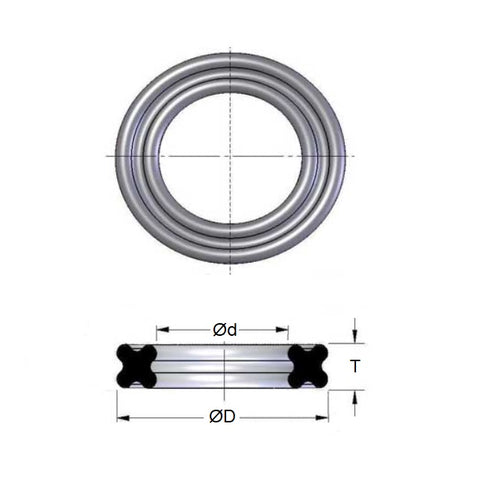

- Inside Diameter (ID)
:
6.00
mm
(Equiv. 0.236 in.) - Section (t)
0.80
mm
(Equiv. 0.031 in.) - Material Alternative to NSK6.00 Oring
- Hardness Duro 70
- Material Nitrile (NBR, BUNA-N)
Product Compliance and Data
Additional Resources
Applications & Uses
- Dental Handpiece Parts
- NSK - Alpha Air and Lite - Oring
- NSK - NTF TU03 - Oring
- NSK - Phatelus II and III SU03 - TU03 - MU03 - Oring
- NSK - Phatelus SU03 - TU03 - MU03 - Oring
- NSK - Vip-Air - Oring
Cross References
- Quad Ring
