SFMR95A-ZZS-MC3 - Datasheet
MBA
Category Information

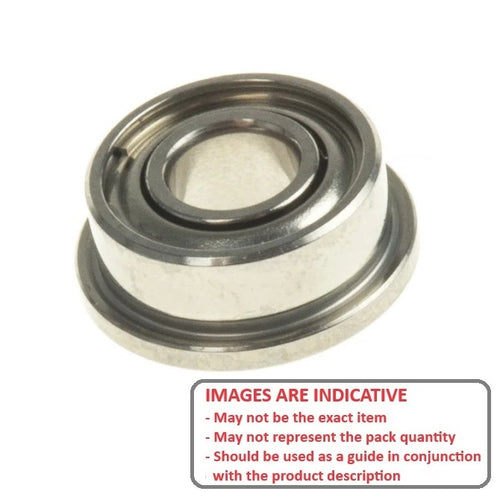

Bearings - Single Row Ball - Flanged - Precision - 440C Stainless440C Stainless Precision Flanged Single Row Ball Bearings. Stainless Steel Bearings with Flanges.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with flanges.
- Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.
Product Data

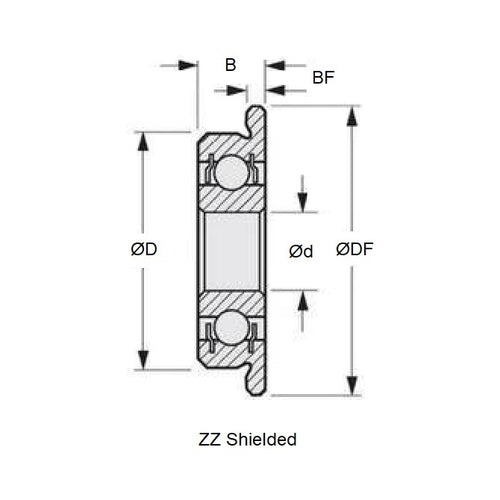

- ID (d)
:
5.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.197 in.) - OD (D)
9.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.354 in.) - Width (B)
3.000
mm
+ 0.000 / - 0.125
(Equiv. 0.118 in.) - Flange Diameter (DF) 10.200 mm
- Flange Width (BF) 0.600 mm
- Precision Grade Abec 1
- Closure Type ZZS
- Bearing Type Radial Flanged
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part FMR95A
- Limiting Speed 50000
- Cage Type Crown
- Static Load Rating KGf 17
- Dynamic Load Rating KGf 44
- Radii 0.15 mm
- Inner Shoulder (UI) 6.00mm
- Outer Shoulder (UO) 8.20 mm
- Number of Balls 8
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZS
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- Associated - Nitro TC3 RTR Plus On Road - Flanged Bearing 5-9-3mm
- Associated - Nitro TC3 With Steering - Flanged Bearing 5-9-3mm
- Schumaker - Fusion - Flanged Bearing 5-9-3mm
- Schumaker - Fusion 21 - Flanged Bearing 5-9-3mm
- Schumaker - Fusion R12 - Flanged Bearing 5-9-3mm
- Schumaker - Menace 21 - Flanged Bearing 5-9-3mm
- Schumaker - Nitro Fusion 21 and RTR - Flanged Bearing 5-9-3mm
Cross References
- 57155K644
- Similar Part FLWBC5-9A
- NTN FLWBC5-9-ZZA
- Stainless FMR95AZZSMC3
- Stainless FMR95A-ZZS-MC3
- Shielded Width A SFMR95/3
- Shielded SFMR95A / 3
- Similar Part SFMR95A-ZZ-MC3
- NTN SMF95-ZZ
- SSLF950ZZ
- SS-LF950-ZZ
- SSLF950-ZZ
- SFMR95AZZSMC3
- SFMR95A-ZZSMC3
- DDLF950ZZ
- DD-LF950-ZZ
- DDLF950-ZZ
- DMB85
- DMB-85
- FLWBC59ZZA
- FLWBC59A
- SMF95ZZ
- FMR95A Basic Size Ref
