PC050-0900-4 - Datasheet
Brighton Best
Category Information

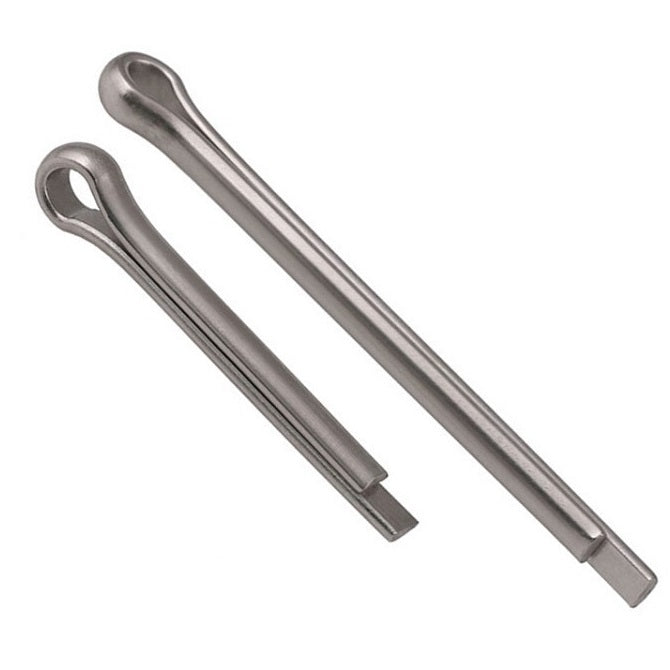

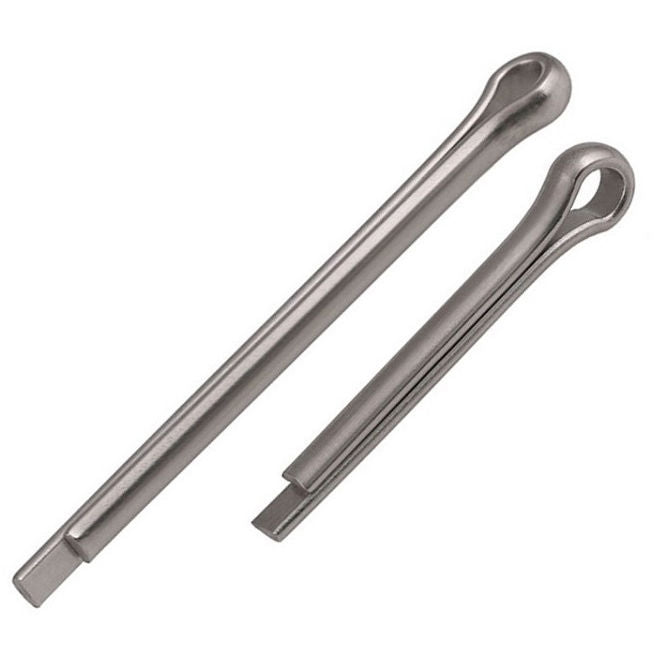

Pins - Split - Stainless SteelStainless Steel Split Pins. Longer lengths may be cut back to a suitable length.
- An expanded range may be available on special order. Please enquire.
- Hole size indicated is maximum for the pin to be effective.
- If the pin you require is not available, you may be able to use the next larger diameter so long as the pin is smaller than your hole size.
Product Data
- Maximum Hole Diameter
:
5.0
mm
(Equiv. 0.197 in.) - Nom. Pin Length (L)
90.0
mm
(Equiv. 3.543 in.) - Nom. Pin Diameter (D)
4.5
mm
(Equiv. 0.177 in.) - Nom. Overall Length 108 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 153590
