SMR85-MC3-AF12 - Datasheet
MBA
Category Information

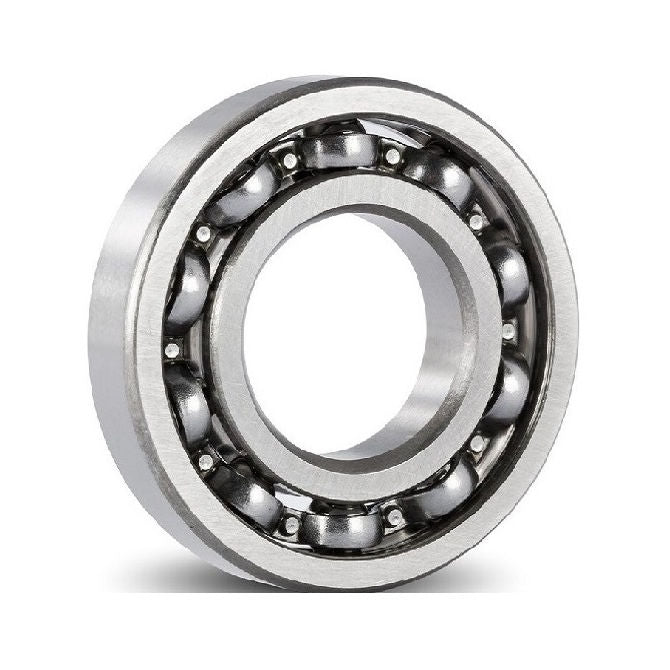

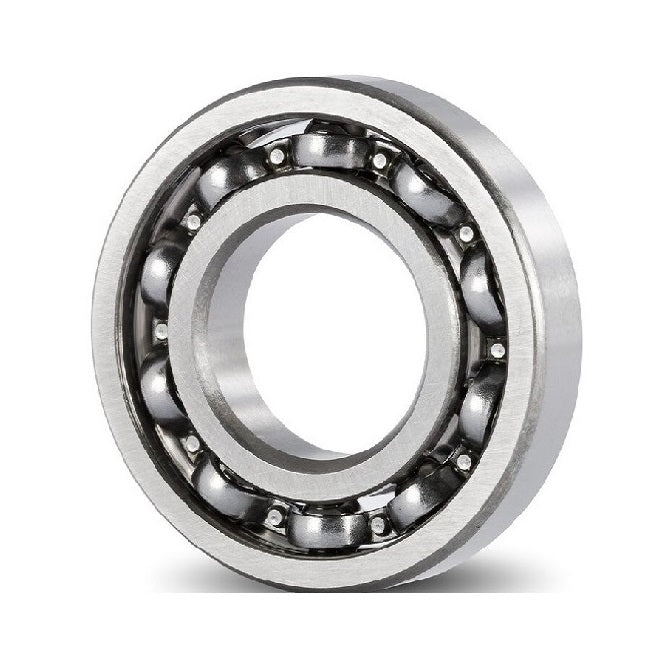

Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data
- ID (d)
:
5.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.197 in.) - OD (D)
8.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.315 in.) - Width (B)
2.000
mm
+ 0.000 / - 0.125
(Equiv. 0.079 in.) - Precision Grade Abec 1
- Closure Type Open
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Oil
- Lubrication Name AF12 Aeroshell Fluid 12
- Basic Part MR85
- Limiting Speed 63000
- Cage Type Crown
- Static Load Rating KGf 12
- Dynamic Load Rating KGf 31
- Radii 0.10 mm
- Inner Shoulder (UI) 5.75mm
- Outer Shoulder (UO) 7.25 mm
- Number of Balls 8
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type Open
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- Serpent - Veteq - Bearing 5-8-2mm
Cross References
- Stainless MR85MC3AF12
- Stainless MR85-MC3-AF12
- SHIMANO RD2030
- SHIMANO RD8741
- Similar Part SMR85
- ADR W617-5
- Similar Part W617-5
- W6175
- SSL850
- SS-L850
- DD-L850
- DDL850
- SMR85-P6
- SMR85P6
- UL508X
- MR85 Basic Size Ref
