FMR85A-ZZS-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Flanged - Precision - Chrome Steel

Chrome Steel Precision Flanged Single Row Ball Bearings. Chrome Steel Bearings with Flanges.

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
  • Single row radial ball bearings with flanges.
  • Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.

Product Data

  • ID (d) : 5.000 mm
    (Equiv. 0.197 in.)
  • OD (D) 8.000 mm
    (Equiv. 0.315 in.)
  • Width (B) 2.500 mm
    (Equiv. 0.098 in.)
  • Flange Diameter (DF) 9.200 mm
  • Flange Width (BF) 0.600 mm
  • Precision Grade Economy
  • Closure Type ZZS
  • Bearing Type Radial Flanged
  • Material Chrome Steel SAE 52100
  • Lubrication Type Grease
  • Lubrication Name Standard Unspecified
  • Basic Part FMR85A
  • Limiting Speed 50350
  • Cage Type Standard
  • Static Load Rating KGf 8.5
  • Dynamic Load Rating KGf 20.9
  • Radii 0.10 mm
  • Inner Shoulder (UI) 5.80mm
  • Outer Shoulder (UO) 7.40 mm
  • Number of Balls 9
  • Clearance ECO (5 to 23)
  • Precision Grade ECO
  • Closure Type ZZS
  • Max Temperature 120 Deg. C
Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

  • RC Car Parts
  • RC Helicopter Parts
  • CEN - Matrix - Flanged Bearing 5-8-2.5mm
  • Cross Fire Force - F1 Electric - Flanged Bearing 5-8-2.5mm
  • Duratrax - Evader BX Nitro - Flanged Bearing 5-8-2.5mm
  • Duratrax - Evader ST Nitro - Flanged Bearing 5-8-2.5mm
  • Duratrax - Street Force GP2 and RTR - Flanged Bearing 5-8-2.5mm
  • Great Vigor - Cage Buggy BL - Bearing
  • Great Vigor - Cage Buggy GP - Bearing
  • GS General Silicone - Storm Pro Gas - Flanged Bearing 5-8-2.5mm
  • Hobao - Hyper 8 - Flanged Bearing 5-8-2.5mm
  • Hobao - Hyper E ST Truggy - Flanged Bearing 5-8-2.5mm
  • Hot Bodies - Lightning Stadium Pro - Flanged Bearing 5-8-2.5mm
  • Hot Bodies - Lightning Stadium RTR - Flanged Bearing 5-8-2.5mm
  • HPI - R40 With Clutch Bell And Steering - Flanged Bearing 5-8-2.5mm
  • Mugen - Athlete Upgrade - Flanged Bearing 5-8-2.5mm
  • Mugen - MBX-RR - Flanged Bearing 5-8-2.5mm
  • NEO - 1-10 Scale Attack 4WD - Flanged Bearing 5-8-2.5mm
  • NEO - 4WD Sport - Flanged Bearing 5-8-2.5mm
  • NEO - T21 Nitro - Flanged Bearing 5-8-2.5mm
  • NEO - T21 Nitro 4WD Pro - Flanged Bearing 5-8-2.5mm
  • New Era Models - Monster Truck - Flanged Bearing 5-8-2.5mm
  • Ofna - Hyper 7 Pro - Flanged Bearing 5-8-2.5mm
  • Ofna - Jammin - Flanged Bearing 5-8-2.5mm
  • Ofna - Jammin 1 CR - Flanged Bearing 5-8-2.5mm
  • Ofna - Jammin 1 CR With Steering - Flanged Bearing 5-8-2.5mm
  • Ofna - Ultra LX COMP RTR - Flanged Bearing 5-8-2.5mm
  • Picco - Integra 1/8 Gas - Flanged Bearing 5-8-2.5mm
  • Picco - Shepherd Speed 1/8 - Flanged Bearing 5-8-2.5mm
  • RD Logistics - Mongoose - Flanged Bearing 5-8-2.5mm
  • Schumaker - Fusion R12 - Flanged Bearing 5-8-2.5mm
  • Serpent - 710 1-10TH Gas Sedan - Flanged Bearing 5-8-2.5mm
  • Serpent - 835 1-10 2WD - Flanged Bearing 5-8-2.5mm
  • Serpent - 835 1-10 4WD - Flanged Bearing 5-8-2.5mm
  • Serpent - 950R With STE Ten and Front Wheel UP - Flanged Bearing 5-8-2.5mm
  • Serpent - 950R With Steering and Tensioner - Flanged Bearing 5-8-2.5mm
  • Serpent - 960 - Flanged Bearing 5-8-2.5mm
  • Serpent - 960 FD - Flanged Bearing 5-8-2.5mm
  • Serpent - Excel 1/8 4WD - Centax Clutch Flanged Bearing
  • Serpent - Excel 1/8 Gas - Flanged Bearing 5-8-2.5mm
  • Serpent - Impact 10 M2 Challenger - Flanged Bearing 5-8-2.5mm
  • Serpent - Impact 10 Pro 2 - Flanged Bearing 5-8-2.5mm
  • Serpent - Impact M2 Spec 2000 4WD - Flanged Bearing 5-8-2.5mm
  • Serpent - Impact-10 - Flanged Bearing 5-8-2.5mm
  • Serpent - Impact-2 2WD Pro - Centax Clutch Flanged Bearing
  • Serpent - Impact-2 2WD Sport - Centax Clutch 1 Flanged Bearing
  • Serpent - Impact-2 2WD Sport - Roller Tensioner for 4WD Belt Flanged Bearing
  • Serpent - Impulse 1/10 Scale Single SPE - Flanged Bearing 5-8-2.5mm
  • Serpent - Sprint 6000 Gas - Flanged Bearing 5-8-2.5mm
  • Serpent - Vector - Clutch 1 Flanged Bearing
  • Serpent - Vector - Flanged Bearing 5-8-2.5mm
  • Serpent - Vector Spec 2000 - Flanged Bearing 5-8-2.5mm
  • Serpent - Veteq - Flanged Bearing 5-8-2.5mm
  • Tamiya - Bruiser - Flanged Bearing 5-8-2.5mm
  • Tamiya - Mountaineer - Flanged Bearing 5-8-2.5mm
  • Tamiya - TOA-3R Series - Flanged Bearing 5-8-2.5mm
  • Thunder Tiger - EK-4 S2 Sport 1/8 Scale - Flanged Bearing 5-8-2.5mm
  • Trinity - G4 Nitro Touring Car-E Class - Flanged Bearing 5-8-2.5mm
  • Trinity - Mongoose - Flanged Bearing 5-8-2.5mm
  • Xray - X Ray - Flanged Bearing 5-8-2.5mm
  • JR - Ergo 30/46 - Flanged Bearing 5-8-2.5mm
  • JR - Ergo 30/46 Complete Kit - Flanged Bearing 5-8-2.5mm

Cross References

  • Great Vigor BB0508025T
  • Shielded Width A FMR85/2.5
  • Shielded FMR85A / 2
  • Similar Part FMR85A-ZZ-ECO
  • FMR85A Basic Size Ref
View full details

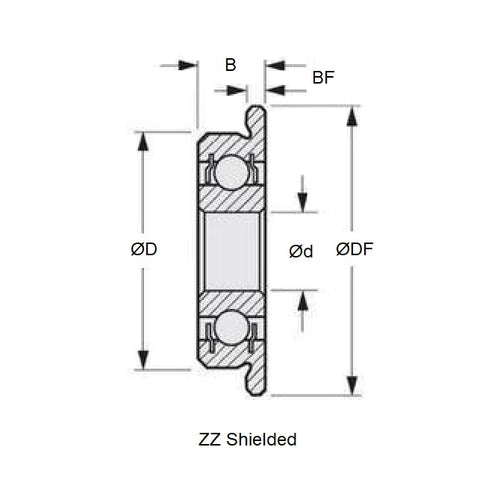

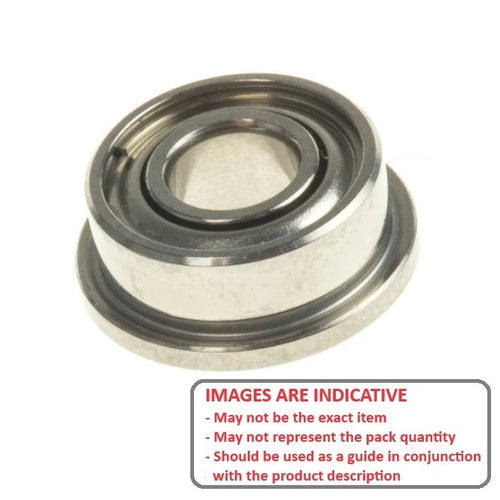

FMR85A-ZZS-ECODiagramFMR85A-ZZS-ECOImage
