CP-050-080-18-025-H-PA-ECO - Datasheet

ECO

Category Information

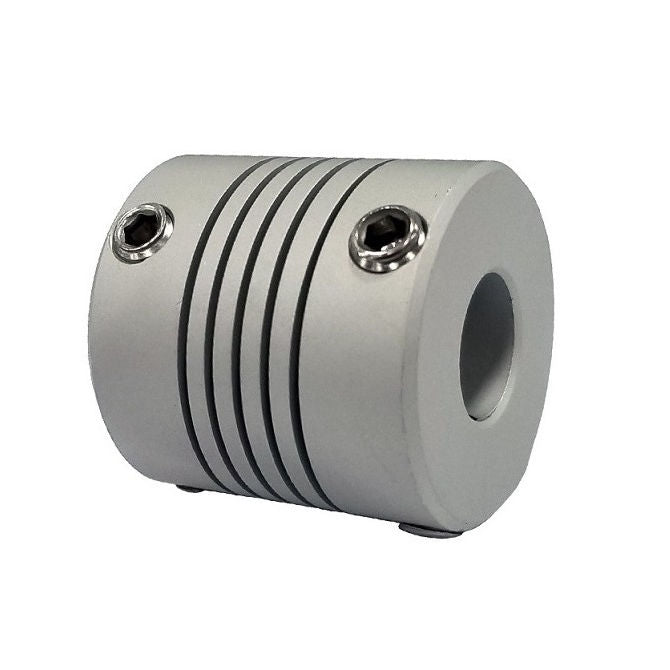

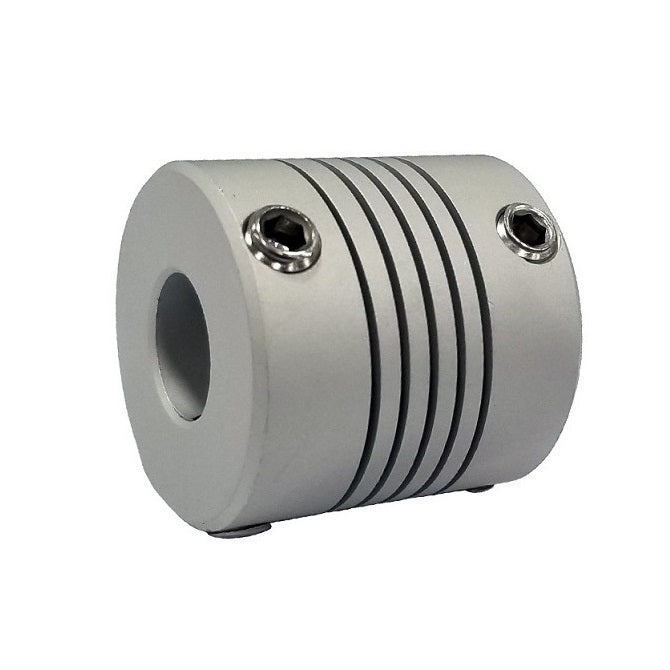

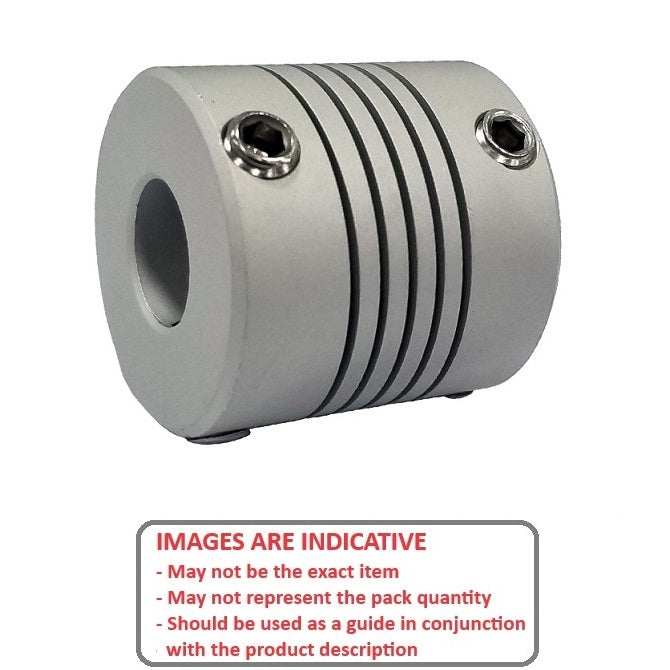

Couplings - Helical - Economy

Economy Helical Couplings. Low cost aluminium couplings primarily used for 3D printer stepper motors

  • An expanded range may be available on special order. Please enquire.
  • Max. Ang Misalignment 5 degrees
  • Max Parallel Offset 0.25mm.

Product Data

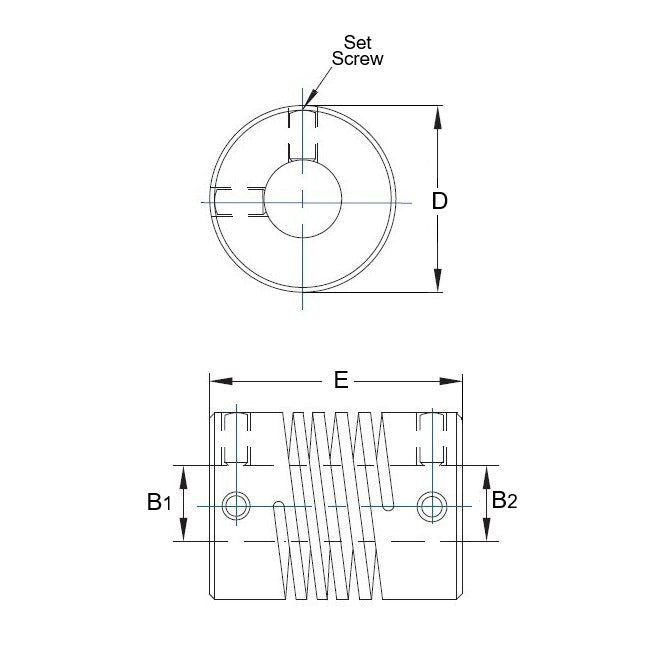

  • Bore (B1) : 5.000 mm
    (Equiv. 0.197 in.)
  • Bore (B2) 8.000 mm
    (Equiv. 0.315 in.)
  • OD (D) / Clearance Dia (H) 18.000 mm
    (Equiv. 0.709 in.)
  • Length (L) 25.000 mm
  • Material Aluminium
Country of Origin: TW

Product Compliance and Data

Additional Resources

    View full details
    CP-050-080-18-025-H-PA-ECODiagramCP-050-080-18-025-H-PA-ECOImage
