PC050-0710-4 - Datasheet

Brighton Best

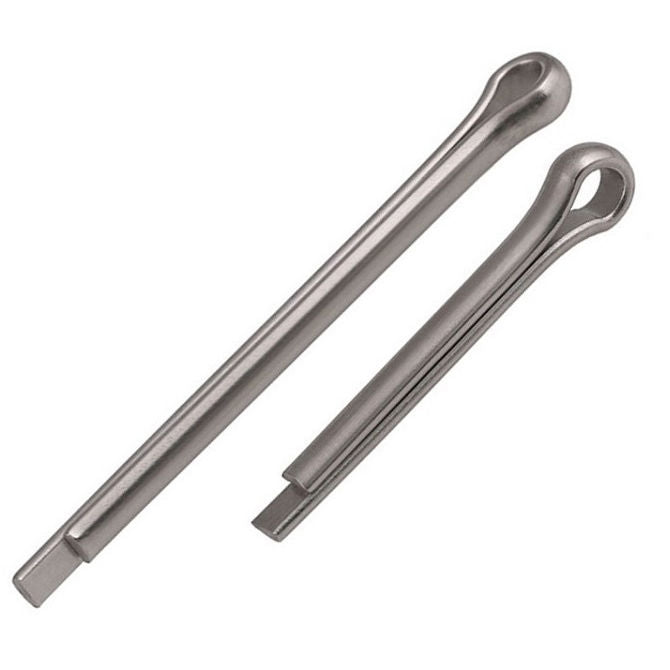

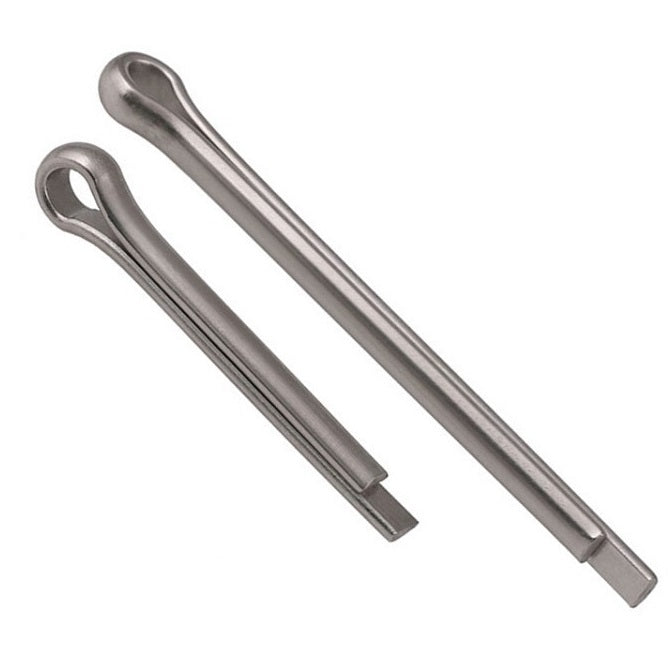

Stainless Steel Split Pins. Longer lengths may be cut back to a suitable length.

An expanded range may be available on special order. Please enquire.
Hole size indicated is maximum for the pin to be effective.
If the pin you require is not available, you may be able to use the next larger diameter so long as the pin is smaller than your hole size.

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

Maximum Hole Diameter : 5.0 mm
(Equiv. 0.197 in.)
Nom. Pin Length (L) 71.0 mm
(Equiv. 2.795 in.)
Nom. Pin Diameter (D) 4.5 mm
(Equiv. 0.177 in.)
Nom. Overall Length 85 mm
Material Stainless Steel 304 (Similar to A2, 18-8) HRB80

Country of Origin: TW
