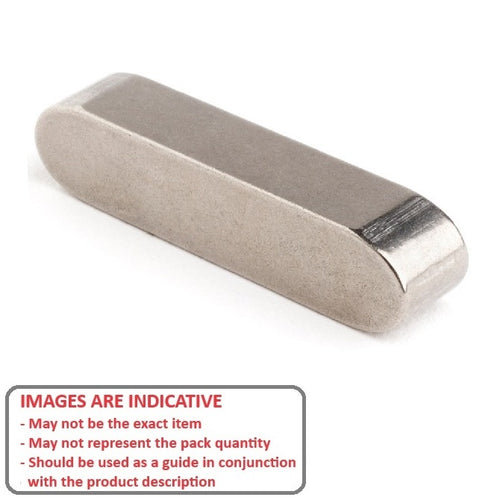

K-0500-0500-3000A-6 - Datasheet
ExaktKey
Category Information
Keys - Machine - Stainless SteelStainless Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data
- Width (W)
:
5.00
mm
+ 0 / - 0.030
(Equiv. 0.197 in.) - Height (h)
5.00
mm
+ 0 / - 0.030
(Equiv. 0.197 in.) - Length (L)
30.00
mm
+/ - 0.25
(Equiv. 1.181 in.) - Tolerance Type Standard Undersized
- End Type A (Rounded Ends)
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
Cross References
- 96717A193
- KK530SS
- KK5-30SS
