PLIT-050-100-100-47-LKP-C - Datasheet

MBA

Category Information

Plungers - Indexing Pull Knob - Steel - With Locking Slot

With Locking Slot Steel Indexing Pull Knob Plungers. With thermoplastic knob

    Product Data

    • Thread (B) : M10x1 (Extra Fine)
    • Overall Length (A) 47.0 mm
      (Equiv. 1.85 in.)
    • Initial End Force 5.4 N
    • Final End Force 2.3 N
    • Tip Diameter (C) 5.0 mm
    • Tip Length (D) 5.0 mm
    • Hex Height (F) 7.0 mm
    • Knob Diameter (J) 21.0 mm
    • Hex Size (K) 13.0
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP-608
      • KBP608
      View full details

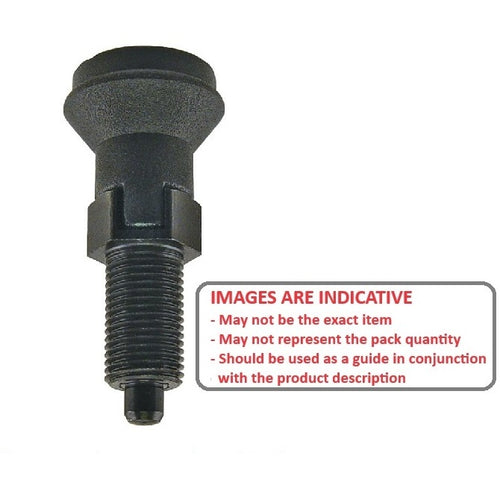

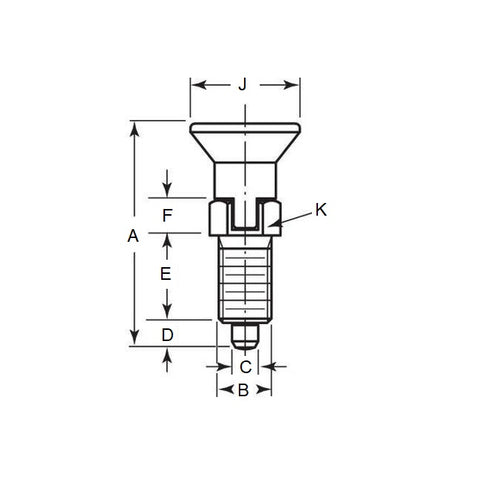

      PLIT-050-100-100-47-LKP-CDiagramPLIT-050-100-100-47-LKP-CImage
