PSP-050-035H-C - Datasheet
MBA
Category Information

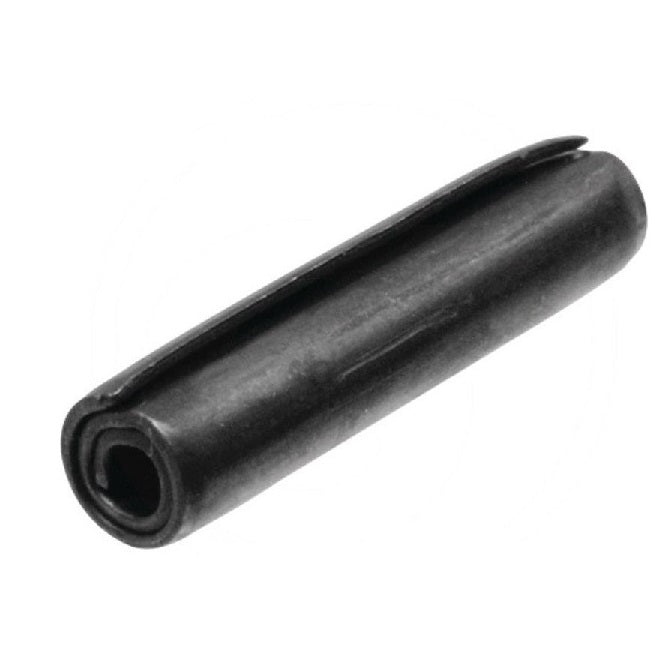

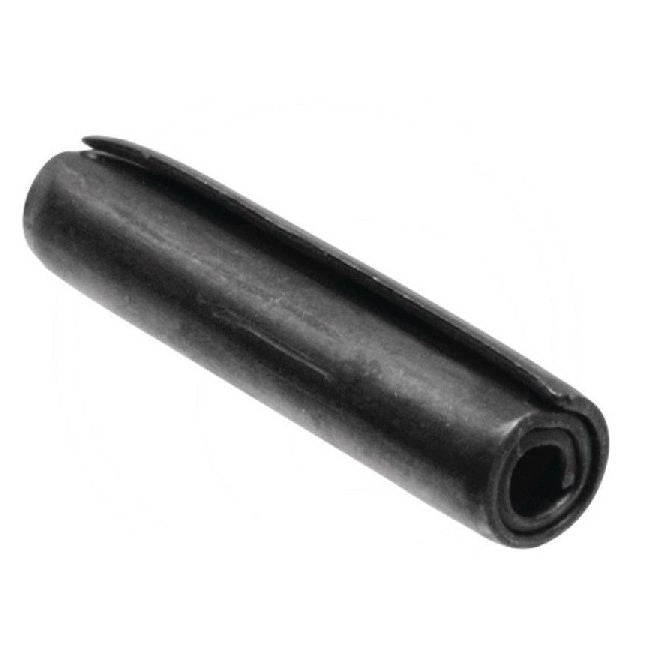

Pins - Coiled - Steel - Heavy DutyHeavy Duty Steel Coiled Pins. ASME B18.8.3M / ISO 8748 Heavy Duty Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter
:
5.00
mm
(Equiv. 0.197 in.) - Length
35.00
mm
+/- 0.50
(Equiv. 1.378 in.) - Drill Size
5.00 - 5.12
mm
(Equiv. 0.197 in.) - Loose Diameter 5.18 - 5.40 mm
- ISO Heavy Duty ASME B18.8.2 / ISO 8748
- Hardness RC 46-53 (HV 420 to 545)
- Material High Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor SPCM-050-035H
- SPCM050035H
