RP050-0300-C - Datasheet
Brighton Best
Category Information

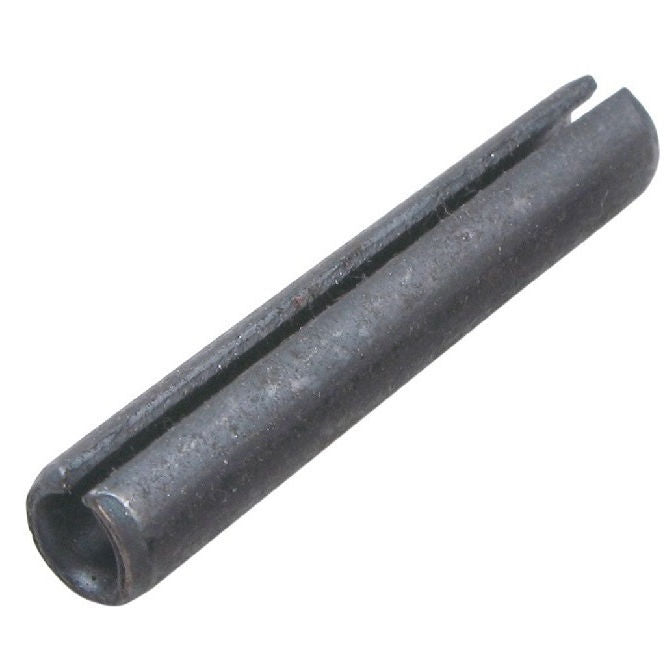

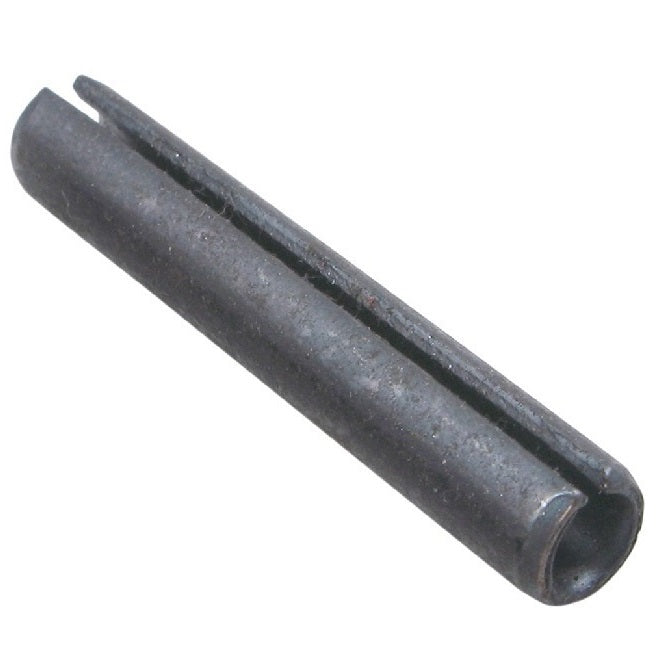

Pins - Roll - Carbon SteelCarbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D)
:
5.00
mm
(Equiv. 0.197 in.) - Length (L)
30.00
mm
(Equiv. 1.181 in.) - Free Diameter
5.50
mm
(Equiv. 0.217 in.) - Thickness (S) 0.80 mm
- Chamfer Length (cL) 0.65-0.85 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Carbon Steel CS70
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 802357
- 91611A313
- NoCor SPM-050-030
- SAP5-30
- SAP530
- SPM050030
