RB-050-032-F-043-B - Datasheet
MBA
Category Information

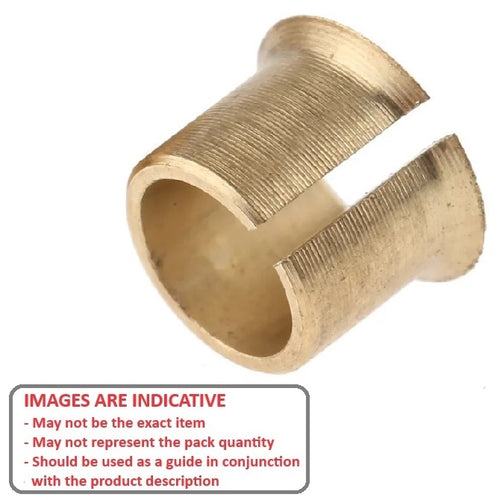

Bore ReducersBore Reducers. Inch to Metric / Inch to Inch / Metric to Metric. Brass reducing bushes.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.

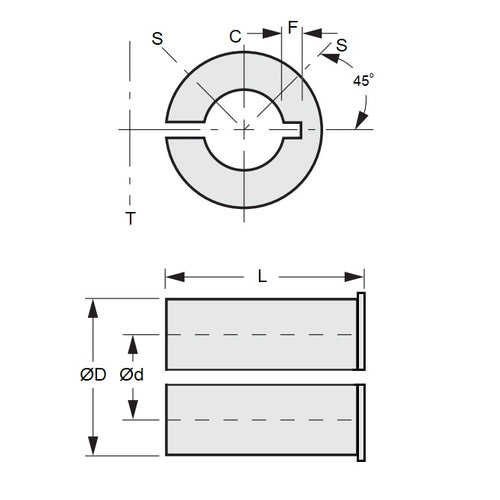

- S = Recommended set screw positions.
- C = Recommended position for single set screw fastening.
- T = Recommended position for tangential screw in clamp hub.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Outside Diameter (d)
:
5.00
mm
+ 0.03 / - 0.05
(Equiv. 0.197 in.) - Inside Diameter (D)
3.18
mm
+ 0.03 / - 0.00
(Equiv. 0.125 in.) - Length (L)
4.3
mm
(Equiv. 0.169 in.) - End Lip Yes
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- BRB251-3.18
- BRB251318
