PLIT-050-100-100-44-KPUN-S3 - Datasheet

MBA

Category Information

Plungers - Indexing Pull Knob - No Collar - Stainless and Plastic - With Nut

With Nut Stainless and Plastic No Collar Indexing Pull Knob Plungers. With thermoplastic knob

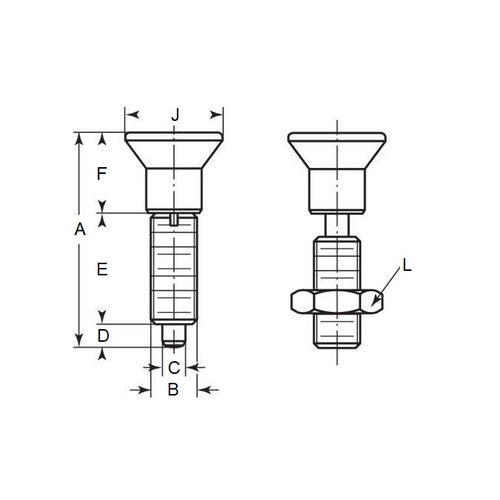

    Product Data

    • Thread (B) : M10x1 (Extra Fine)
    • Overall Length (A) 43.5 mm
      (Equiv. 1.713 in.)
    • Initial End Force 2.3 N
    • Final End Force 5.4 N
    • Tip Diameter (C) 5.0 mm
    • Tip Length (D) 5.0 mm
    • Hex Height (F) 14.5 mm
    • Knob Diameter (J) 21.0 mm
    • Nut Size (L) 17.0
    • Material Stainless Steel 303 (Similar to A2, 304, 18-8)
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP-648
      • KBP648
