RP050-0160-Z - Datasheet
Brighton Best
Category Information

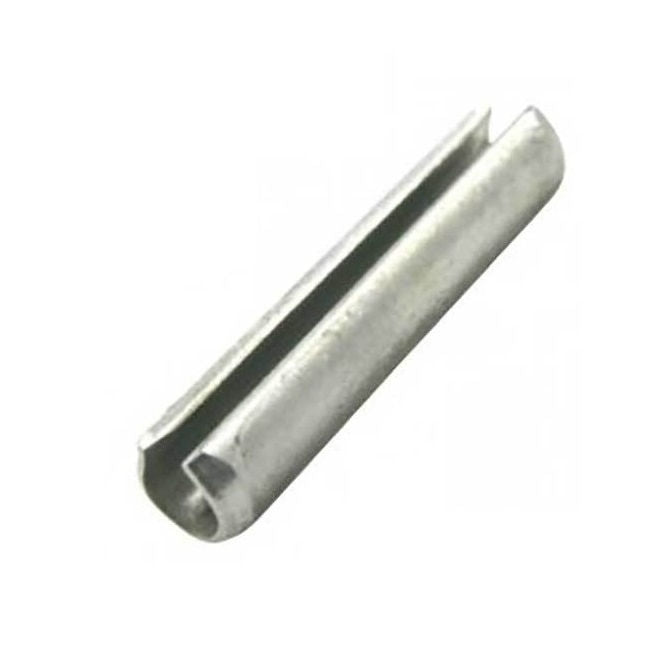

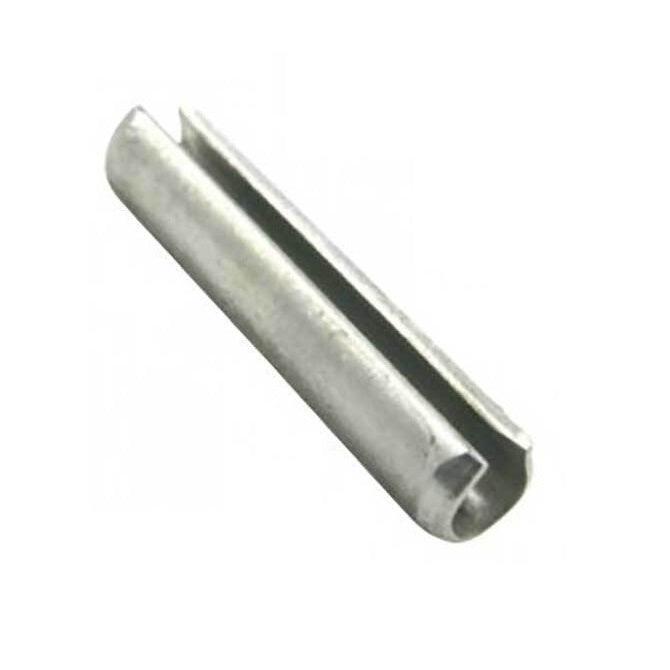

Pins - Roll - Zinc PlatedZinc Plated Roll Pins. Zinc plated spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D)
:
5.00
mm
(Equiv. 0.197 in.) - Length (L)
16.00
mm
(Equiv. 0.63 in.) - Free Diameter
5.50
mm
(Equiv. 0.217 in.) - Thickness (S) 1.00 mm
- Chamfer Length (cL) 0.30-1.40 mm
- Chamfer Diameter (cD) 4.8 mm
- Standard B18.8.4M
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- NoCor SPMZ-050-016
- Brighton Best V81336
- SPMZ050016
