W0050-CU-014-028-BNP - Datasheet
MBA
Category Information

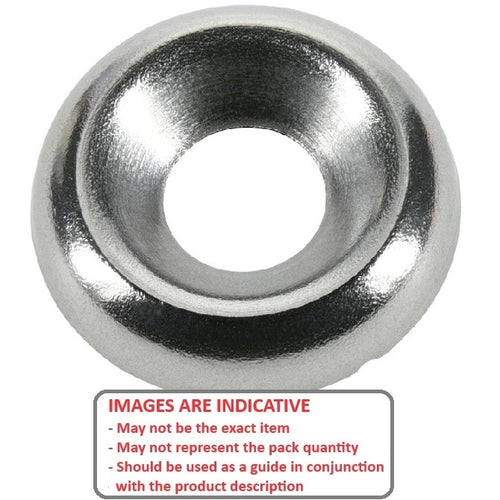

Washers - Cup - Brass - Nickel PlatedNickel Plated Brass Cup Washers. Nickel plated brass cup washer selection.
- Washers with a concave, cup-like shape, used with countersunk screws to provide a neat, finished look and evenly distribute the fastener's load.
- Protects softer materials from damage caused by the fastener head.
Product Data

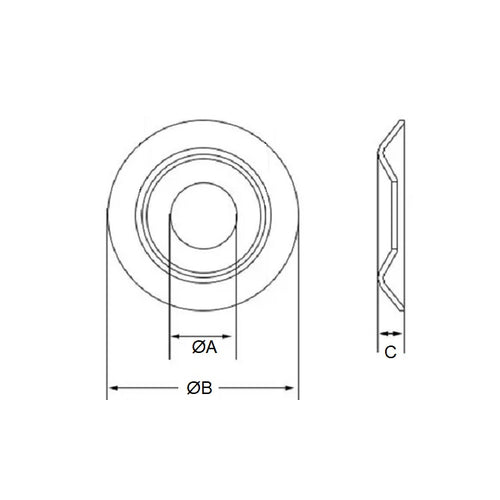

- Nominal Inside Diameter (A)
:
5
mm
(Equiv. 0.197 in.) - Nominal Outside Diameter (B)
14.30
mm
(Equiv. 0.563 in.) - Nom. Section (C)
2.80
mm
(Equiv. 0.11 in.) - Size M5 (5x0.8mm)
- Actual ID (Ref) 5.5 mm
- Material Brass Nickel Plated
Product Compliance and Data
Additional Resources
Cross References
- WASCA 1000495
- 99435A650
- WASCA WSCBNIPNO10
