RP050-0120-C - Datasheet
MBA
Category Information

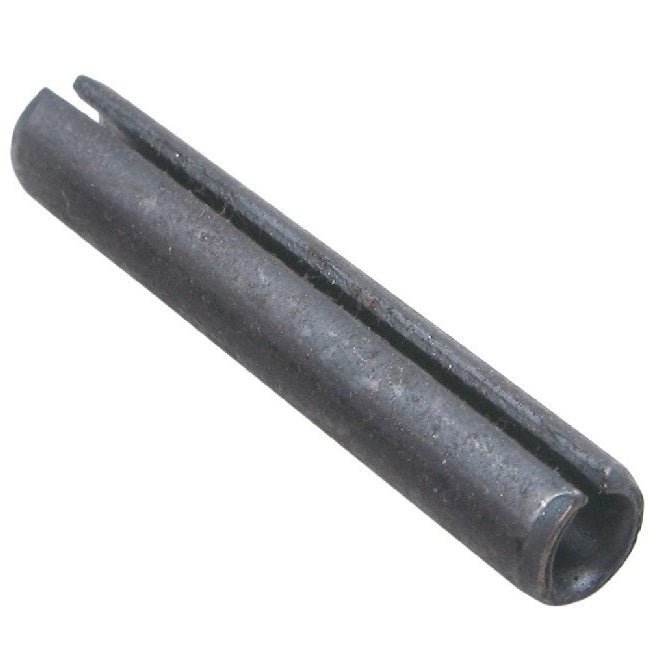

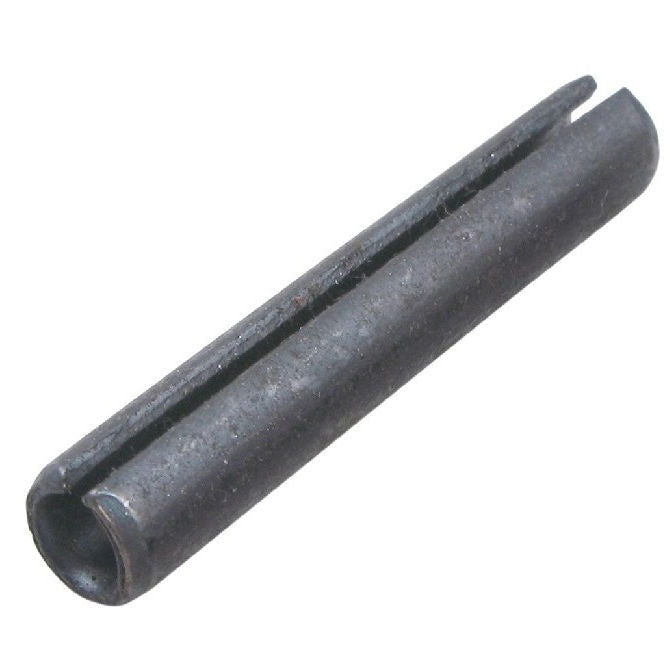

Pins - Roll - Carbon SteelCarbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D)
:
5.00
mm
(Equiv. 0.197 in.) - Length (L)
12.00
mm
(Equiv. 0.472 in.) - Free Diameter
5.50
mm
(Equiv. 0.217 in.) - Thickness (S) 0.80 mm
- Chamfer Length (cL) 0.65-0.85 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 802330
- 91611A304
- NoCor SPM-050-012
- NoCor SPM-050-012-I
- SAP512
- SAP5-12
- SPM050012
- SPM050012I
