MR115-2RB-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Chrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.

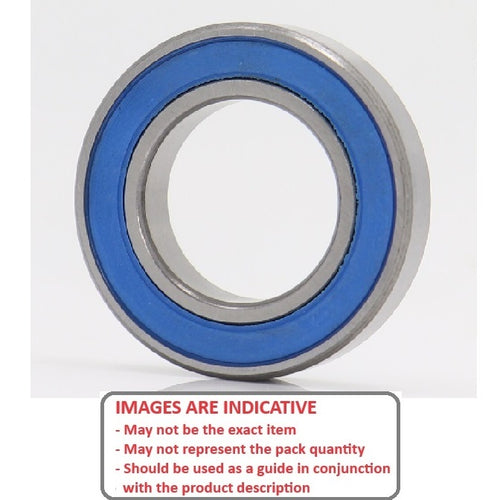

Standard single row radial ball bearings.

Product Data

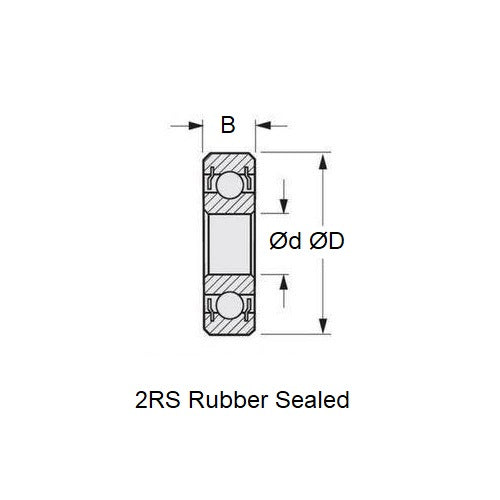

ID (d) : 5.000 mm
(Equiv. 0.197 in.)
OD (D) 11.000 mm
(Equiv. 0.433 in.)
Width (B) 4.000 mm
(Equiv. 0.157 in.)
Precision Grade Economy
Closure Type 2RB
Bearing Type Radial
Material Chrome Steel SAE 52100

Lubrication Type Grease
Lubrication Name Standard Unspecified
Basic Part MR115
Limiting Speed 38475
Cage Type Standard
Static Load Rating KGf 28.5
Dynamic Load Rating KGf 69.4
Radii 0.15 mm
Inner Shoulder (UI) 6.81mm
Outer Shoulder (UO) 9.90 mm
Number of Balls 8
Clearance ECO (5 to 23)
Precision Grade ECO
Closure Type 2RB
Max Temperature 80 Deg. C

Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

RC Car Parts
Academy and MRC - Baja King - Bearing 5-11-4mm
Academy and MRC - Desert Thunder - Bearing 5-11-4mm
Academy and MRC - Hammer Head - Bearing 5-11-4mm
Academy and MRC - Ironman 1/10 - Bearing 5-11-4mm
Academy and MRC - MT-10M - Bearing 5-11-4mm
Academy and MRC - MT10S - Bearing 5-11-4mm
Academy and MRC - Nitro Thunder King - Bearing 5-11-4mm
Academy and MRC - Thunder King - Bearing 5-11-4mm
Academy and MRC - Thunder King Large Rear Wheels - Bearing 5-11-4mm
Academy and MRC - Vortex - Bearing 5-11-4mm
Anderson - 8000 1-10 Gas - Bearing 5-11-4mm
Associated - MGT4.60SE - Bearing 5-11-4mm
Associated - Monster GT Truck and RTR Nitro Off Road - Bearing 5-11-4mm
CEN - Fun Factor MT2 - Bearing 5-11-4mm
CEN - Magnum NX - Bearing 5-11-4mm
CEN - Mini Madness Complete - Bearing 5-11-4mm
CEN - Mini-Madness - Bearing 5-11-4mm
CEN - MT2 Truck - Bearing 5-11-4mm
CEN - TR4 - Bearing 5-11-4mm
Duratrax - Sport Nitro - Bearing 5-11-4mm
Futaba - FX-10 - Bearing 5-11-4mm
Futaba - FXT-10 - Bearing 5-11-4mm
HPI - Micro RS4 - Bearing 5-11-4mm
HPI - Micro RS4 Complete With Upgrade - Bearing 5-11-4mm
HPI - Micro RS4 RTR 4WD - Bearing 5-11-4mm
HPI - Micro RS4 RTR3 - Bearing 5-11-4mm
HPI - MT2 18SS Nitro - Bearing 5-11-4mm
HPI - MT2 Nitro - Bearing 5-11-4mm
HPI - Nitro Mini RS4 - Bearing 5-11-4mm
HPI - Nitro Race RS4 MT - Bearing 5-11-4mm
HPI - Nitro RS4 - Bearing 5-11-4mm
HPI - Nitro RS4 2 - Bearing 5-11-4mm
HPI - Nitro RS4 3 Evo RTR - Bearing 5-11-4mm
HPI - Nitro RS4 3 RTR - Bearing 5-11-4mm
HPI - Nitro RS4 MT - Bearing 5-11-4mm
HPI - Nitro RS4 Sport - Bearing 5-11-4mm
HPI - RS4 - Bearing 5-11-4mm
HPI - RS4 Mini - Bearing 5-11-4mm
HPI - RS4 Mini Pro - Bearing 5-11-4mm
HPI - RS4 MT - Bearing 5-11-4mm
HPI - RS4 Nitro RaceR 2 Car - Bearing 5-11-4mm
HPI - RS4 Nitro RTRSuper Nitro RAll - Bearing 5-11-4mm
HPI - RS4 Nitro Rush - Bearing 5-11-4mm
HPI - RS4 Pro - Bearing 5-11-4mm
HPI - RS4 Pro 2 With Steering - Bearing 5-11-4mm
HPI - RS4 Pro 3 - Bearing 5-11-4mm
HPI - RS4 Pro Sport - Bearing 5-11-4mm
HPI - RS4 Pro3 Spec - Bearing 5-11-4mm
HPI - RS4 RaceR 2 - Bearing 5-11-4mm
HPI - RS4 Rally - Bearing 5-11-4mm
HPI - RS4 RTR 3 Type SS - Bearing 5-11-4mm
HPI - RS4 Sport 2 Complete Kit - Bearing 5-11-4mm
HPI - Rush Evo - Bearing 5-11-4mm
HPI - Savage 25 and RTR - Bearing 5-11-4mm
HPI - Savage SS - Bearing 5-11-4mm
HPI - Savage XSS - Bearing 5-11-4mm
HPI - Super Nitro RS4 - Bearing 5-11-4mm
HPI - Super Nitro RS4 Rally - Bearing 5-11-4mm
Losi - Eight-T - Bearing 5-11-4mm
Megatech - Racer New - Bearing 5-11-4mm
Megatech - Racer Old - Bearing 5-11-4mm
Mugen - Prime 12 - Bearing 5-11-4mm
Nikko - Dictator - Bearing 5-11-4mm
Nikko - Rhino - Bearing 5-11-4mm
Ofna - CD3 Pro RTR - Bearing 5-11-4mm
Ofna - CD3 Sport RTR - Bearing 5-11-4mm
Ofna - Nitro OB4 - Bearing 5-11-4mm
Ofna - Pirate 10 RTR With .12 Engine G - Bearing 5-11-4mm
Ofna - Z-10 Nitro - Bearing 5-11-4mm
Panda - Tiempo 1/8 Gas Sealed - Bearing 5-11-4mm
Royal - Crusher - Bearing 5-11-4mm
Royal - Ripper - Bearing 5-11-4mm
Tamiya - 911 GTI 1-8 Gas - Bearing 5-11-4mm
Tamiya - Acura Complete - Bearing 5-11-4mm
Tamiya - Acura Upgrade - Bearing 5-11-4mm
Tamiya - Aero Max - Bearing 5-11-4mm
Tamiya - Alfa Romeo - Bearing 5-11-4mm
Tamiya - Alfa Romeo Sprint GTA FF-02 - Bearing 5-11-4mm
Tamiya - AMG Merceded C-Class D1 - Bearing 5-11-4mm
Tamiya - AMG Merceded C-Class D2 - Bearing 5-11-4mm
Tamiya - Baja King TL-01B - Bearing 5-11-4mm
Tamiya - Bear Hawk - Bearing 5-11-4mm
Tamiya - Beetle - Bearing 5-11-4mm
Tamiya - Big Wig - Bearing 5-11-4mm
Tamiya - Blackfoot - Bearing 5-11-4mm
Tamiya - Blackfoot Xtreme and XB Mighty BU - Bearing 5-11-4mm
Tamiya - Blitzer Beetle - Bearing 5-11-4mm
Tamiya - BMW 318 SI - Bearing 5-11-4mm
Tamiya - BMW M3 Sedan - Bearing 5-11-4mm
Tamiya - Bruiser - Bearing 5-11-4mm
Tamiya - Bush Devil - Bearing 5-11-4mm
Tamiya - Castrol Mugen - Bearing 5-11-4mm
Tamiya - Chevrolet S10 - Bearing 5-11-4mm
Tamiya - Dirt Thrasher - Bearing 5-11-4mm
Tamiya - DJ TRF 414 Pro Module Suspension - Bearing 5-11-4mm
Tamiya - F Pro - Bearing 5-11-4mm
Tamiya - F201 Complete Kit - Bearing 5-11-4mm
Tamiya - Falcon - Bearing 5-11-4mm
Tamiya - FF-02 - Bearing 5-11-4mm
Tamiya - Fire Dragon - Bearing 5-11-4mm
Tamiya - Ford Escort - Bearing 5-11-4mm
Tamiya - Ford F-150 - Bearing 5-11-4mm
Tamiya - Ford F-350 Highlift - Bearing 5-11-4mm
Tamiya - Ford SVT F-150 Lightning - Bearing 5-11-4mm
Tamiya - Frog - Bearing 5-11-4mm
Tamiya - Globe Liner - Bearing 5-11-4mm
Tamiya - Grasshopper II - Bearing 5-11-4mm
Tamiya - Hi Lux - Bearing 5-11-4mm
Tamiya - Honda - Bearing 5-11-4mm
Tamiya - Honda 99T - Bearing 5-11-4mm
Tamiya - Honda Civic FWD - Bearing 5-11-4mm
Tamiya - Honda CRV - Bearing 5-11-4mm
Tamiya - Hornet - Bearing 5-11-4mm
Tamiya - Hot Shot - Bearing 5-11-4mm
Tamiya - Hot Shot II - Bearing 5-11-4mm
Tamiya - Hummer - Bearing 5-11-4mm
Tamiya - Integra LE - Bearing 5-11-4mm
Tamiya - Jacos Mugen - Bearing 5-11-4mm
Tamiya - Jaguar Complete - Bearing 5-11-4mm
Tamiya - Jaguar Upgrade - Bearing 5-11-4mm
Tamiya - Jeep Wrangler - Bearing 5-11-4mm
Tamiya - Juggernaut - Bearing 5-11-4mm
Tamiya - Juggernaut 2 - Bearing 5-11-4mm
Tamiya - King Cab - Bearing 5-11-4mm
Tamiya - King Hauler - Bearing 5-11-4mm
Tamiya - Lancia Lancia - Bearing 5-11-4mm
Tamiya - Levin FWD - Bearing 5-11-4mm
Tamiya - Lexus GS400 Upgrade - Bearing 5-11-4mm
Tamiya - Lotus - Bearing 5-11-4mm
Tamiya - Lunchbox - Bearing 5-11-4mm
Tamiya - M02-M - Bearing 5-11-4mm
Tamiya - M03 Chassis S/FF-02 - Bearing 5-11-4mm
Tamiya - M-04L/FF-02 - Bearing 5-11-4mm
Tamiya - M1025 Hummer - Bearing 5-11-4mm
Tamiya - Madcap - Bearing 5-11-4mm
Tamiya - Mantaray - Bearing 5-11-4mm
Tamiya - Max Climber TLT-1 - Bearing 5-11-4mm
Tamiya - Merceded 1/8 Gas - Bearing 5-11-4mm
Tamiya - Merceded 190 - Bearing 5-11-4mm
Tamiya - Merceded C11 Complete - Bearing 5-11-4mm
Tamiya - MI Pilot Escort - Bearing 5-11-4mm
Tamiya - Miata - Bearing 5-11-4mm
Tamiya - Midnight Pumpkin - Bearing 5-11-4mm
Tamiya - Mini Cooper - Bearing 5-11-4mm
Tamiya - Mitsubishi Pajero - Bearing 5-11-4mm
Tamiya - Mitsubishi XB Pajero - Bearing 5-11-4mm
Tamiya - Mitsubishi XB Pajero Rally SPO - Bearing 5-11-4mm
Tamiya - Monster Beetle - Bearing 5-11-4mm
Tamiya - Mountaineer - Bearing 5-11-4mm
Tamiya - Mudblaster - Bearing 5-11-4mm
Tamiya - New Beetle - Bearing 5-11-4mm
Tamiya - New Super Beetle Upgrade - Bearing 5-11-4mm
Tamiya - Nissan 300 GTS - Bearing 5-11-4mm
Tamiya - Nissan Skyline - Bearing 5-11-4mm
Tamiya - Peugeot FF02 - Bearing 5-11-4mm
Tamiya - Porsche 956 - Bearing 5-11-4mm
Tamiya - Porsche Boxter - Bearing 5-11-4mm
Tamiya - Porsche Taisin - Bearing 5-11-4mm
Tamiya - Prerunner - Bearing 5-11-4mm
Tamiya - Renault Alpine Monte Carlo A11 - Bearing 5-11-4mm
Tamiya - Renault Clio Williams - Bearing 5-11-4mm
Tamiya - Rising STorm - Bearing 5-11-4mm
Tamiya - Rock Buster TLT-1 - Bearing 5-11-4mm
Tamiya - Rough Rider - Bearing 5-11-4mm
Tamiya - Rover Mini Cooper - Bearing 5-11-4mm
Tamiya - S. BigFoot - Bearing 5-11-4mm
Tamiya - Semi-Trailer King Hauler - Bearing 5-11-4mm
Tamiya - Sonic Fighter - Bearing 5-11-4mm
Tamiya - Stadium Blitzer - Bearing 5-11-4mm
Tamiya - Stadium Racer Upgrade - Bearing 5-11-4mm
Tamiya - Striker - Bearing 5-11-4mm
Tamiya - Subaru Brat - Bearing 5-11-4mm
Tamiya - Super G - Bearing 5-11-4mm
Tamiya - Supershot - Bearing 5-11-4mm
Tamiya - Supra Grand National - Bearing 5-11-4mm
Tamiya - SVT Lightning - Bearing 5-11-4mm
Tamiya - T-05 Upgrade - Bearing 5-11-4mm
Tamiya - TA01 Series - Bearing 5-11-4mm
Tamiya - TA-05 - Bearing 5-11-4mm
Tamiya - TAO-3 Series - Bearing 5-11-4mm
Tamiya - TAO4 Complete - Bearing 5-11-4mm
Tamiya - TAO4 Upgrade - Bearing 5-11-4mm
Tamiya - TB Evolution III - Bearing 5-11-4mm
Tamiya - TB-01 - Bearing 5-11-4mm
Tamiya - TB-02 - Bearing 5-11-4mm
Tamiya - Terra Crusher - Bearing 5-11-4mm
Tamiya - TG10 MK1 Upgrade - Bearing 5-11-4mm
Tamiya - TGR - Bearing 5-11-4mm
Tamiya - TGX - Bearing 5-11-4mm
Tamiya - Thunder Dragon - Bearing 5-11-4mm
Tamiya - TL01 Series - Bearing 5-11-4mm
Tamiya - TNX Nitro With Steering - Bearing 5-11-4mm
Tamiya - TOA-3R Series - Bearing 5-11-4mm
Tamiya - Top Force - Bearing 5-11-4mm
Tamiya - Toyota Blitz TA02 - Bearing 5-11-4mm
Tamiya - Toyota Castrol Celica FF02 - Bearing 5-11-4mm
Tamiya - Tozai - Bearing 5-11-4mm
Tamiya - TRF 414 - Bearing 5-11-4mm
Tamiya - TRF 414-DJ Pro Module Suspension - Bearing 5-11-4mm
Tamiya - TRF 415 - Bearing 5-11-4mm
Tamiya - TRIS Gas - Bearing 5-11-4mm
Tamiya - TT-01 - Bearing 5-11-4mm
Tamiya - Twin Detonator - Bearing 5-11-4mm
Tamiya - TXT-1 Truck - Bearing 5-11-4mm
Tamiya - Vanessa - Bearing 5-11-4mm
Tamiya - Volkswagon Racer Complete - Bearing 5-11-4mm
Tamiya - Volkswagon Racer-Touareg - Bearing 5-11-4mm
Tamiya - Volvo 850 - Bearing 5-11-4mm
Tamiya - Wild Dagger - Bearing 5-11-4mm
Tamiya - Wild Willy 2 and Metallic - Bearing 5-11-4mm
Tamiya - Wild Willy 2000 - Bearing 5-11-4mm
Tamiya - Williams - Bearing 5-11-4mm
Tamiya - XB Ford F-150 Lightning - Bearing 5-11-4mm
Thunder Tiger - Twister 1/10 Scale - Bearing 5-11-4mm
Traxxas - 4-TEC RTR - Bearing 5-11-4mm
Traxxas - Bandit - Bearing 5-11-4mm
Traxxas - Bullet - Bearing 5-11-4mm
Traxxas - Cat - Bearing 5-11-4mm
Traxxas - Eagle - Bearing 5-11-4mm
Traxxas - E-Maxx - Bearing 5-11-4mm
Traxxas - E-Maxx 4WD RTR - Bearing 5-11-4mm
Traxxas - Fiero - Bearing 5-11-4mm
Traxxas - Hawk - Bearing 5-11-4mm
Traxxas - Hawk 2 - Bearing 5-11-4mm
Traxxas - Jato - Bearing 5-11-4mm
Traxxas - LXS II - Bearing 5-11-4mm
Traxxas - Nitro 4 TEC RTR - Bearing 5-11-4mm
Traxxas - Nitro 4-TEC Pro - Bearing 5-11-4mm
Traxxas - Nitro Rustler .15 - Bearing 5-11-4mm
Traxxas - Nitro Rustler 2.5 - Bearing 5-11-4mm
Traxxas - Nitro Sport SE - Bearing 5-11-4mm
Traxxas - Nitro Stampede - Bearing 5-11-4mm
Traxxas - Nitro Stampede Upgrade Kit - Bearing 5-11-4mm
Traxxas - RAD 2 - Bearing 5-11-4mm
Traxxas - Radicator - Bearing 5-11-4mm
Traxxas - Revo - Bearing 5-11-4mm
Traxxas - Rustler - Bearing 5-11-4mm
Traxxas - Rustler Sport - Bearing 5-11-4mm
Traxxas - S-Maxx Stadium Max RTR - Bearing 5-11-4mm
Traxxas - Spirit - Bearing 5-11-4mm
Traxxas - Sport Maxx - Bearing 5-11-4mm
Traxxas - SRT - Bearing 5-11-4mm
Traxxas - Stampede - Bearing 5-11-4mm
Traxxas - Street Sport - Bearing 5-11-4mm
Traxxas - Street Sport RC - Bearing 5-11-4mm
Traxxas - T- Maxx 3.3 - Bearing 5-11-4mm
Traxxas - T-Maxx 2.5 With Additional Trans - Bearing 5-11-4mm
Traxxas - T-Maxx 4WD RTR - Bearing 5-11-4mm
Traxxas - T-Maxx 4WD RTR With Additional T - Bearing 5-11-4mm
Traxxas - T-Maxx All - Bearing 5-11-4mm
Traxxas - T-Maxx With Additional Trans. BR - Bearing 5-11-4mm
Traxxas - TRX-1 - Bearing 5-11-4mm
Traxxas - TRX-3 - Bearing 5-11-4mm
Yokomo - Hot Dog - Bearing 5-11-4mm
Yokomo - YR-4 - Bearing 5-11-4mm
Yokomo - YR-4 II - Bearing 5-11-4mm
Yokomo - YR-4GP - Bearing 5-11-4mm
Yokomo - YR-4M - Bearing 5-11-4mm
Yokomo - YRF-2 - Bearing 5-11-4mm
Yokomo - YZ10W - Bearing 5-11-4mm

Cross References

LOSI LOSA6947
Sealed MR115 / 4
MR115-2RS
MR115RS
MR115-RS
MR1152RS
MR115 Basic Size Ref

View full details

Price & Order
