MR105A-2RB-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Chrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
Standard single row radial ball bearings.

Product Data

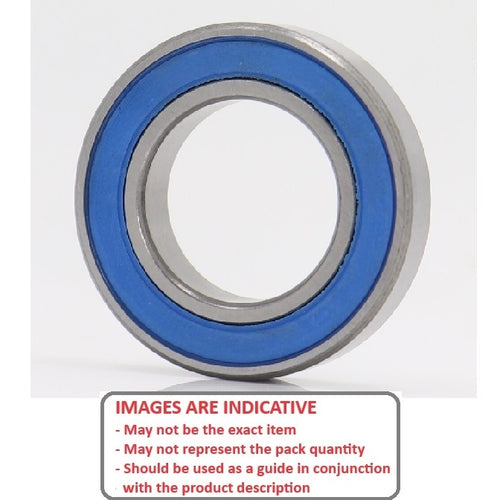

Deleted Item. Available while stocks last. Double blue rubber sealed economy bearing

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

ID (d) : 5.000 mm
O.D. (D) 10.000 mm
Width (B) 4.000 mm
Precision Grade Economy
Closure Type 2RB
Bearing Type Radial
Material Chrome Steel SAE 52100

Lubrication Type Grease
Lubrication Name Standard Unspecified
Basic Part MR105A
Limiting Speed 42750
Cage Type Standard
Static Load Rating KGf 16.2
Dynamic Load Rating KGf 41.8
Radii 0.15 mm
Inner Shoulder (UI) 6.00mm
Outer Shoulder (UO) 8.40 mm
Number of Balls 8
Clearance ECO (5 to 23)
Precision Grade ECO
Closure Type 2RB
Max Temperature 80 Deg. C

Country of Origin: TW
