W0050-F-010-100-NY - Datasheet
MBA
Category Information

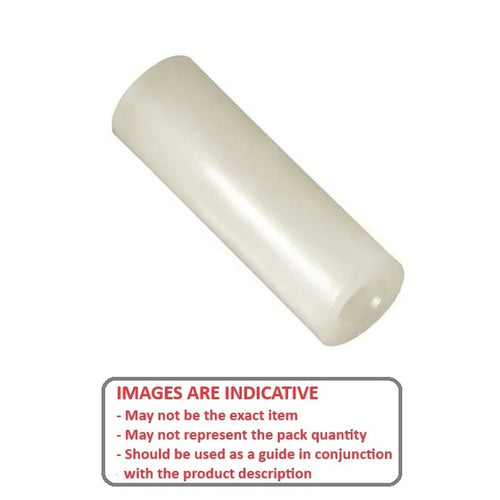

Spacers - Through Bore Round - NylonNylon Through Bore Round Spacers. Shaft spacers - Nylon
- An expanded range may be available on special order. Please enquire.
Product Data
- ID (d)
:
5
mm
+ 0.4 / - 0.0
(Equiv. 0.197 in.) - OD (D)
10
mm
(Equiv. 0.394 in.) - Length (L)
10
mm
+ / - 0.15
(Equiv. 0.394 in.) - Material Nylon (Polyamide 6/6)
Product Compliance and Data
Additional Resources
Cross References
- 93657A079
- PLN5-10
- PLN510
