PLIT-050-100-100-21-C - Datasheet

MBA

Category Information

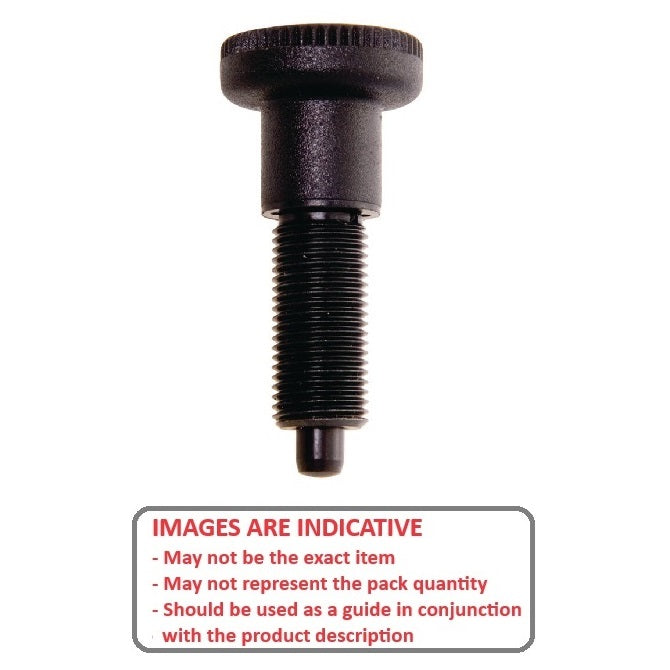

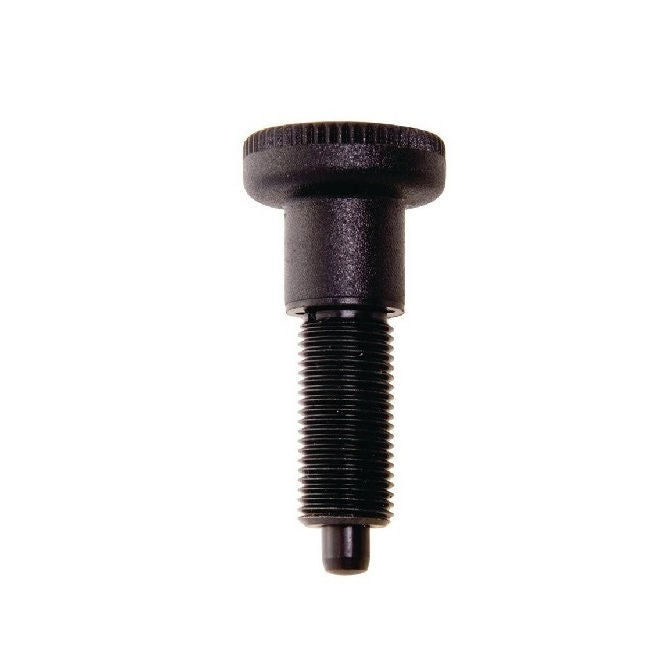

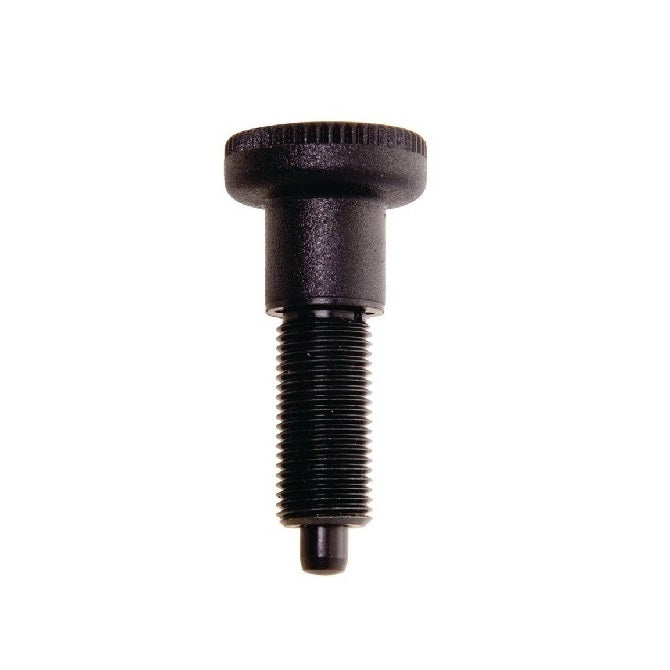

Plungers - Indexing - Non Locking - Steel

Steel Non Locking Indexing Plungers. Used to prevent change in locking position due to shearing force. Spring loaded for use in fastening, locating and indexing on equipment, tooling and other applications.

Body and pin are steel with black oxide finish.

Product Data

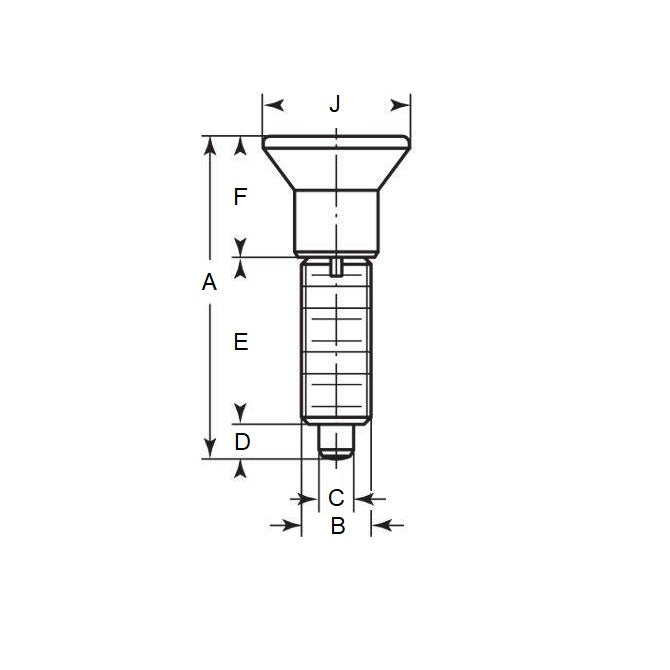

Thread (B) : M10x1 (Extra Fine)
Thread Length (H) 22.0 mm
(Equiv. 0.866 in.)
Initial End Force 0.7 N
Final End Force 1.6 N
Tip Diameter (A) 5.0 mm
Tip Length (D) 5.0 mm
Installation Tool WIP-5005
Material Steel

Country of Origin: US
