PLIT-050-100-100-21-S3 - Datasheet

MBA

Category Information

Plungers - Indexing - Non Locking - Stainless Steel

Stainless Steel Non Locking Indexing Plungers. Used to prevent change in locking position due to shearing force. Spring loaded for use in fastening, locating and indexing on equipment, tooling and other applications.

    Product Data

    • Thread (B) : M10x1 (Extra Fine)
    • Thread Length (E) 22.0 mm
      (Equiv. 0.866 in.)
    • Initial End Force 0.6 N
    • Final End Force 1.3 N
    • Tip Diameter (A) 5.0 mm
    • Tip Length (D) 5.0 mm
    • Installation Tool WIP-5005
    • Material Stainless Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • WIP-410
      • WIP410
      View full details

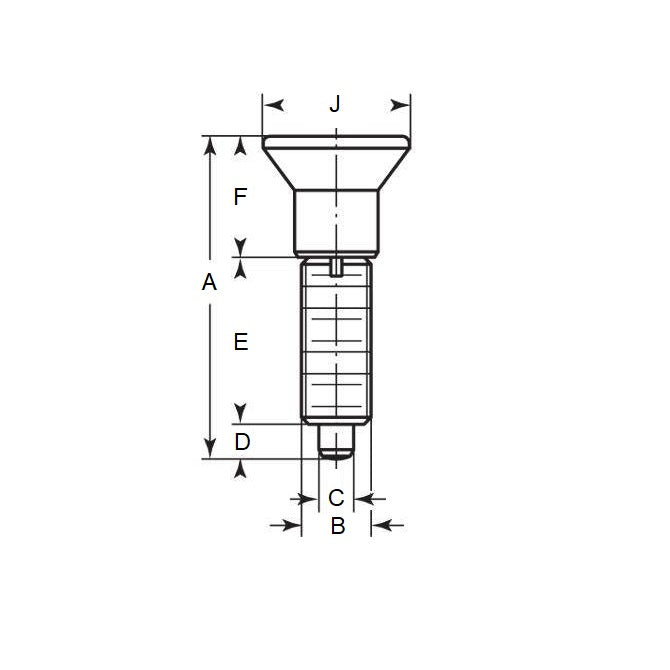

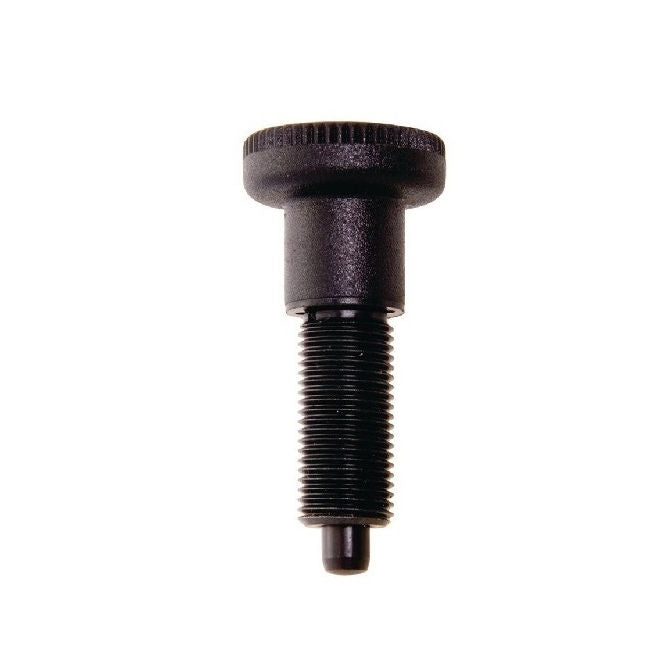

      PLIT-050-100-100-21-S3DiagramPLIT-050-100-100-21-S3Image
