PLIT-050-095C-37-C - Datasheet
MBA
Category Information

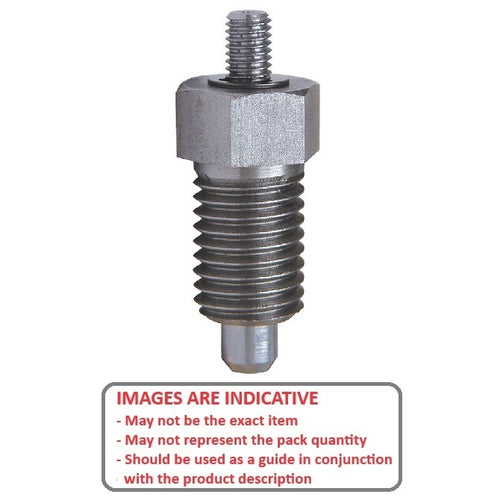

Plungers - Indexing Pull Knob - Non Locking - Without Knob - SteelSteel Without Knob Non Locking Indexing Pull Knob Plungers. Used to prevent change in locking position due to shearing force. Spring loaded for use in fastening, locating and indexing on equipment, tooling and other applications.
- Body and pin are steel with black oxide finish.
Product Data

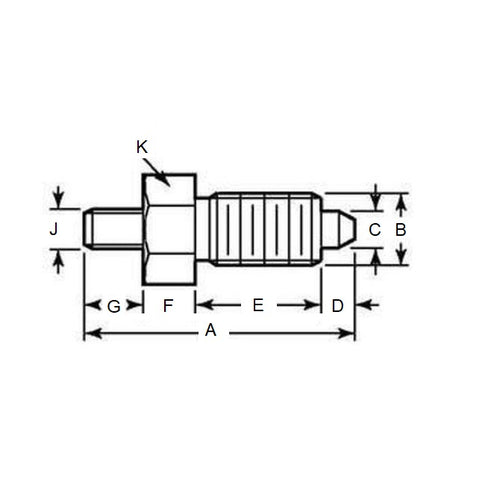

- Thread (B) : 3/8-16 UNC (9.53mm)
- Overall Length (A)
37.1
mm
(Equiv. 1.461 in.) - Initial End Force 0.5 N
- Final End Force 1.2 N
- Tip Diameter (C) 5.0 mm
- Tip Length (D) 5.1 mm
- Top Thread M4 (4x0.7mm) mm
- Nut Size (K) 13.0
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- GIP-105
- GIP105
