Miniature Bearings Australia
MBN2-0059-29-1270F - Datasheet
MBA
Category Information
Mounts - Base Neoprene Style 2Base Neoprene Style 2 Mounts. This is the main category in this series
Product Data
- Rated Load : 59.000 kg (lbs)

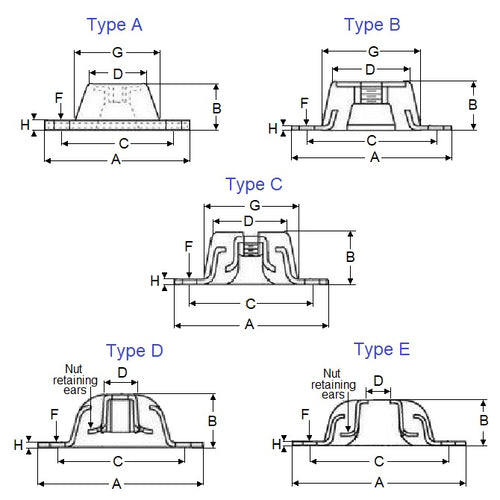

- Style B
- Length (A)
95.250
mm
(Equiv. 3.75 in.) - Height (B) 28.575 mm
- Bolt Centres (C) 76.200 mm
- D 46.04 mm
- G 55.56 mm
- F 8.73 mm
- H 3.18 mm
- 1/2-20 UNF (12.7mm) Thread
- Durometer 40
- Material Neoprene Rubber
Product Compliance and Data
Additional Resources
Cross References
- 64875K25
- KR-60-11
- KR6011
