BL-05715-PVC - Datasheet

MBA

Category Information

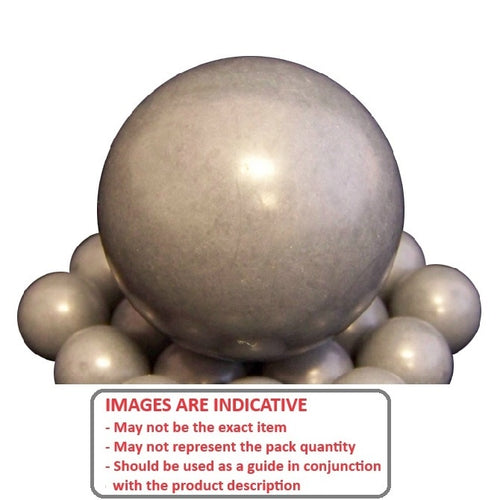

Balls - Plastic - PVC

PVC Plastic Balls. PVC is a chemically stable material, which shows little change in molecular structure, and also exhibits little change in its mechanical strength.

  • Plastic ball grades are not the same as those for precision balls
  • Polyvinyl chloride
  • It is relatively hard and can be polished to a shine.
  • It is easily worked or machined and has good chemical and biological resistance. Zero water absorption in 24 hours
  • Heat Deflection Temperature 176 F / 80 C. Rockwell Hardness 115

Product Data

  • Diameter (D) : 57.15 mm +/- 0.000762
    (Equiv. 2.25 in.)
  • Material PVC
  • Precision Grade 3
  • Hardness 114 Rockwell R
  • Properties Water, impact and abrasion resistant.
  • Colour Grey
  • Specific Gravity 1.41
  • Material PVC (Polyvinyl Chloride)
Country of Origin: US
