FRB-226RS - Datasheet

MBA

Category Information

Bumpers - Cylindrical Female Thread

Cylindrical Female Thread Bumpers. With steel core.

    Product Data

    • Diameter (A) : 57.150 mm
      (Equiv. 2.25 in.)
    • Height (B) 57.150 mm
      (Equiv. 2.25 in.)
    • Thread 1-8 UNC (25.4mm)
    • Thread Length 25.400 mm
    • End Curved
    • Durometer 70A
    • Colour Black
    • 34.925
    • Material Polyurethane
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • 9546K85
      View full details

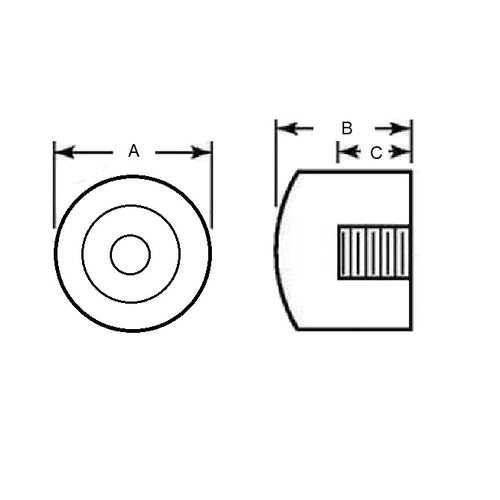

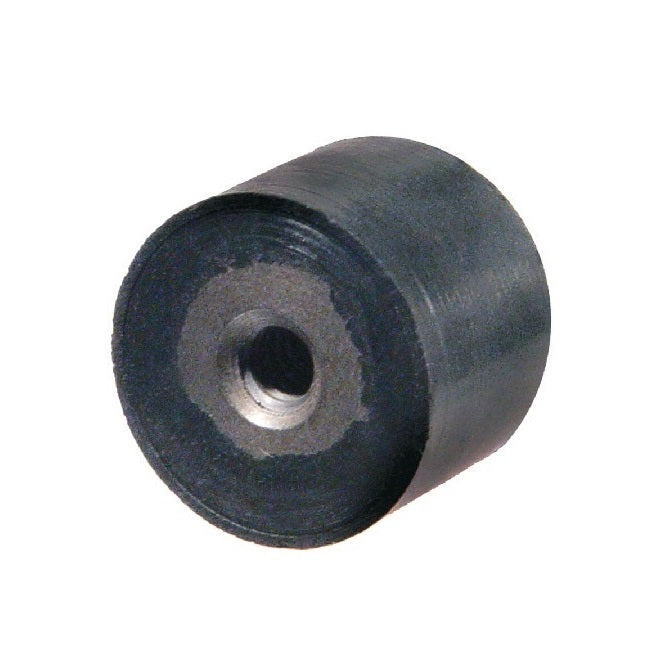

      FRB-226RSDiagramFRB-226RSImage
