CCF160RS - Datasheet

MBA

Category Information

Roller Followers - Standard

Standard Roller Followers. This is the main category in this series

    Product Data

    • Diameter (A) : 57.150 mm
      (Equiv. 2.25 in.)
    • Overall Width (D) 33.338 mm
      (Equiv. 1.313 in.)
    • Bore (B) 15.875 mm
      (Equiv. 0.625 in.)
    • Width (C) 31.750 mm
    • E 38.100 mm
    • Dynamic Load Rating 3669.562 kg
    • Static Load Rating 9588.943 kg
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • 6831K51
      • CCF160
      • CCF-160
      View full details

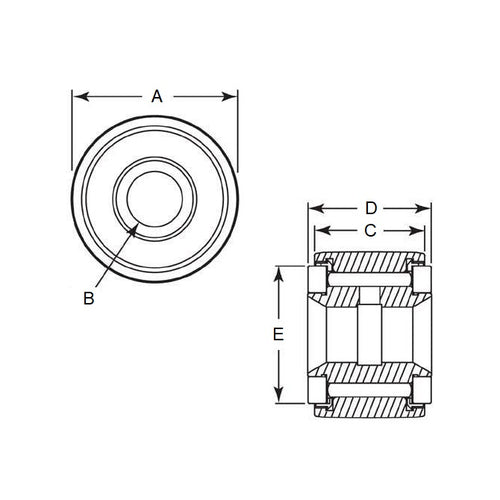

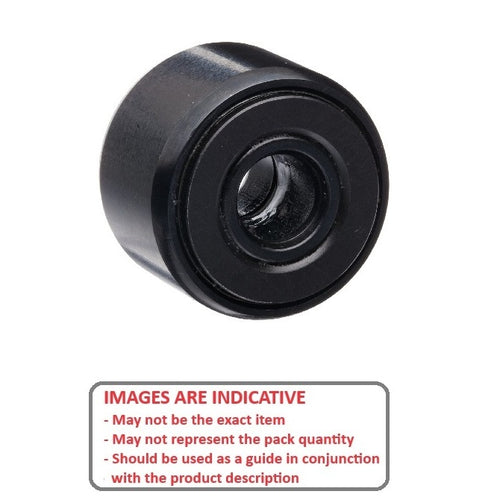

      CCF160RSDiagramCCF160RSImage
