CCF-1240RS - Datasheet

MBA

Category Information

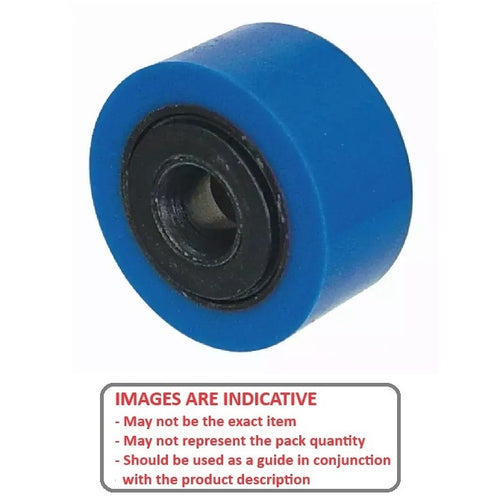

Roller Followers - Urethane Coated

Urethane Coated Roller Followers. Urethane tyred cam yoke rollers for noise reduction, reduced wear and non marking. 80 Shore A hardness.

  • Polycoated shore 80A cast urethane cover

Product Data

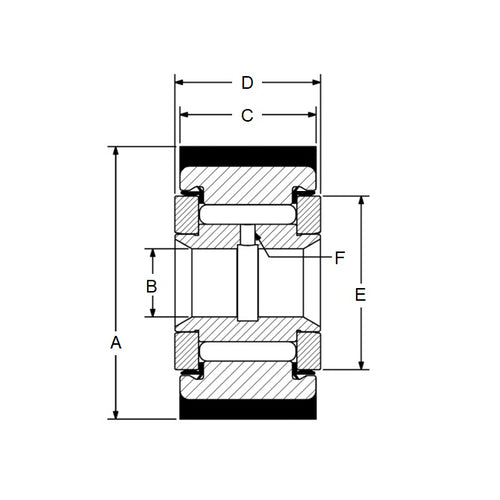

  • Outside Diameter (A) : 57.150 mm +/- 0.13
    (Equiv. 2.25 in.)
  • Bore (B) 15.875 mm + 0.005 / - 0.010
    (Equiv. 0.625 in.)
  • Roller Width (C) 31.750 mm +/- 0.13
    (Equiv. 1.25 in.)
  • Overall Width (D) +0.13/-0.26 33.338 mm
  • Approx Washer OD (E) Ref. 38.1 mm
  • Oil Hole Diameter (F) 2.38 mm
  • Material Polyurethane Coated
Country of Origin: US
