B-XL-0055-0079-NFB - Datasheet
MBA
Category Information

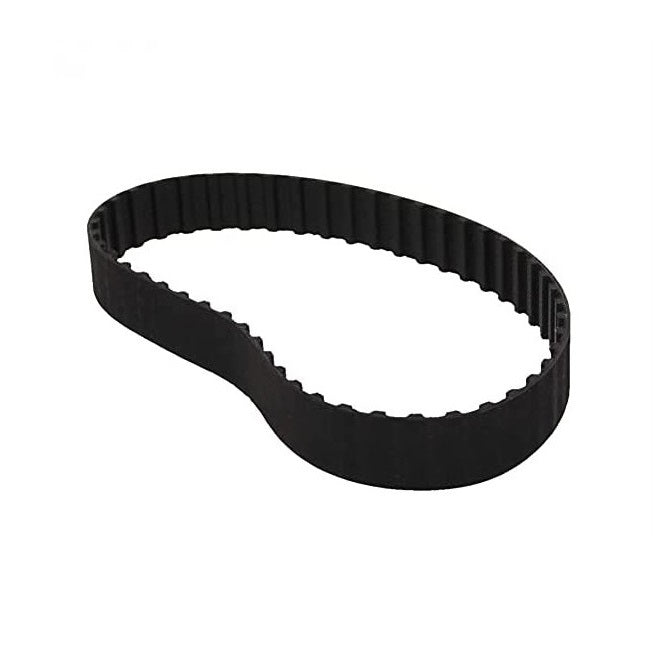

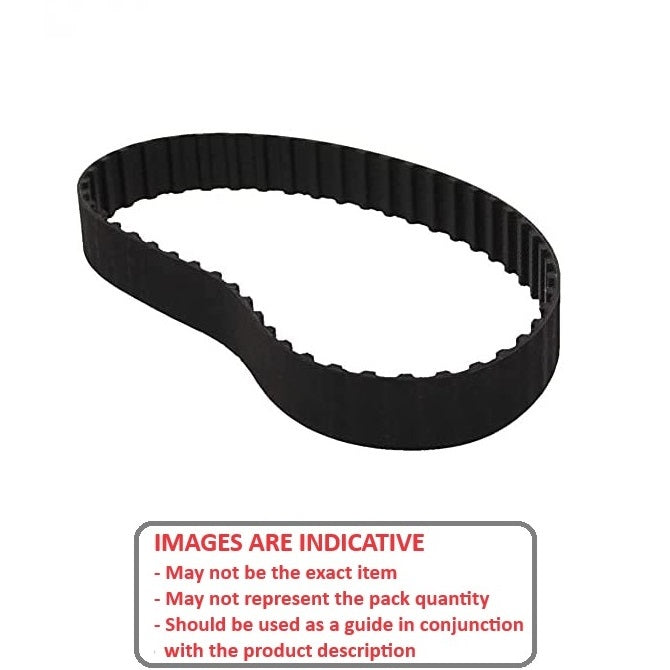

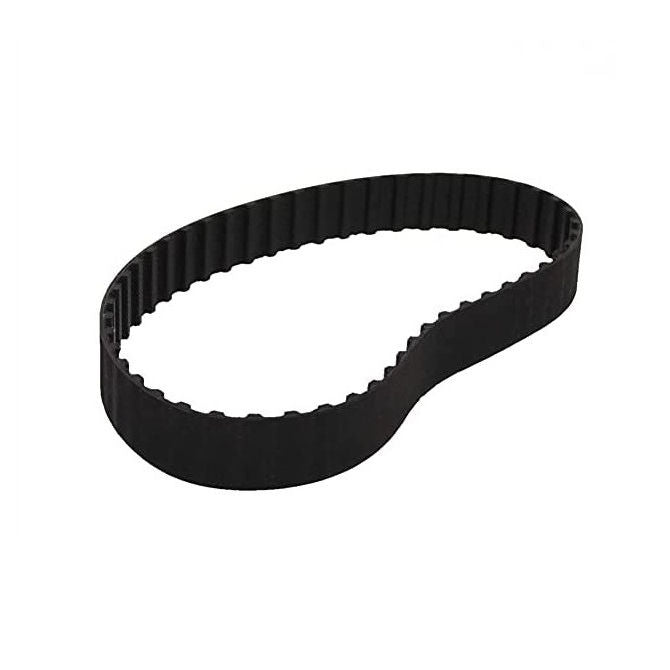

Belts - Inch Timing - 5.080mm Pitch XL - 7.9mm Wide7.9mm Wide 5.080mm Pitch XL Inch Timing Belts. Standard Series Timing Belts 5.08mm or 0.2 inch (1/5 inch) pitch.
- Timing belts combined with timing pulleys, provide power transmission without slippage.
- Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
- Tooth Length (T) - 1.4mm
- Tooth Height (H) - 1.3mm
- Belt Height (W) - 2.3mm - Corner Radii ( r ) - 0.4mm
- Pitch (P) - 5.08mm (0.2 inch)
Product Data
- Number of Teeth : 55
- Length
279.4
mm
(Equiv. 11 in.) - Width
7.9
mm
(Equiv. 0.311 in.) - Reinforcement Fibreglass
- Appearance Black
- Breaking Strength 1254 N
- Min Temperature (C) -34 Deg C
- Max Temperature (C) 85 Deg C
- Tooth Angle (A) 50 °
- Material Nylon Covered Neoprene with Fibreglass Cords
Product Compliance and Data
Additional Resources
Applications & Uses
- Power Tool Parts
- Black and Decker - KA85 Belt Sander - Drive Timing Belt
Cross References
- Gates 110XL031
- Black and Decker 144
- Black and Decker 144 - 110XL031 or 68568316-00
- Black and Decker 68568316-00
- Gates BXL00550080NF
- A6R3-055031
- A6R3055031
- A6R3M055080
- 144 110XL031 or 6856831600
