6011-Z-NR-C3 - Datasheet

MBA

Category Information

Bearings - Single Row Ball - with Snap Ring - Standard - Chrome Steel

Chrome Steel Standard with Snap Ring Single Row Ball Bearings. Chrome Steel Bearings with a Snap Ring on the OD

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
  • Single row radial ball bearings with snap ring.

Product Data

This bearing has a snap ring on the OD

  • ID (d) : 55.000 mm + 0.000 / - 0.015
    (Equiv. 2.165 in.)
  • OD (D) 90.000 mm + 0.000 / - 0.015
    (Equiv. 3.543 in.)
  • Width (B) 18.000 mm + 0.000 / - 0.150
    (Equiv. 0.709 in.)
  • Groove Width (b) 2.700 mm
  • Closure Type Z
  • Bearing Type Radial with Snp Ring
  • Snap Ring Thickness 2.460 mm
  • Max. Dist. To Groove Edge 2.870 mm
  • Material Chrome Steel SAE 52100
  • Lubrication Type Grease
  • Lubrication Name Standard Unspecified
  • Basic Part 6011
  • Limiting Speed 4000
  • Cage Type Standard
  • Static Load Rating KGf 2620
  • Dynamic Load Rating KGf 3100
  • Radii Undefined mm
  • Inner Shoulder (UI) Undefinedmm
  • Outer Shoulder (UO) Undefined mm
  • Number of Balls Undefined
  • Clearance C3
  • Precision Grade Abec 1
  • Closure Type Z
  • Max Temperature 120 Deg. C
Country of Origin: JP

Product Compliance and Data

Additional Resources

View full details

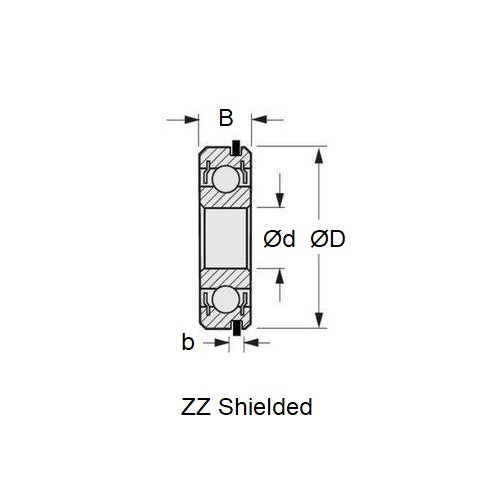

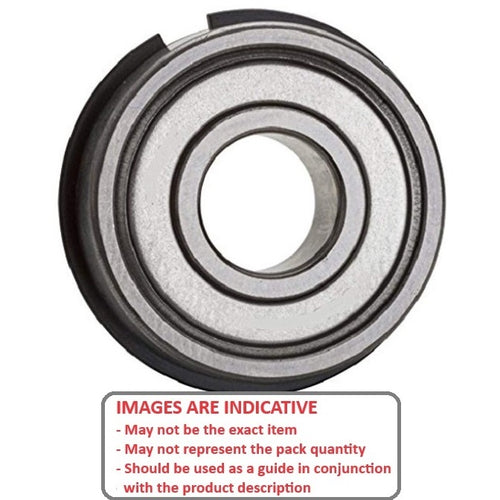

6011-Z-NR-C3Diagram6011-Z-NR-C3Image
