P-030G-054-200A - Datasheet

MBA

Category Information

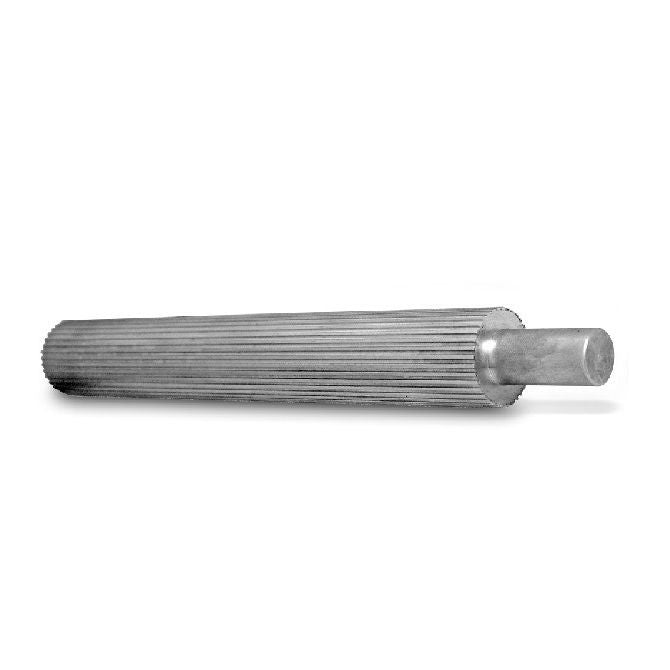

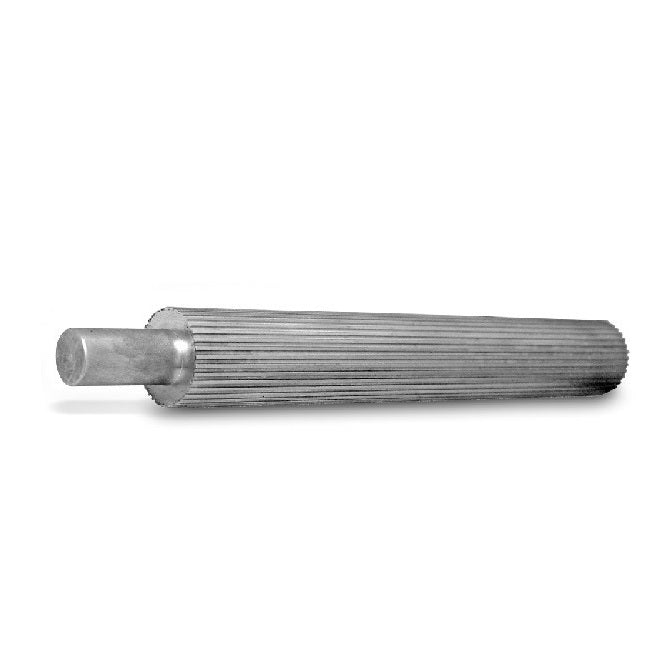

Pulleys - Metric Timing Stock - 3.000mm Pitch - GT Aluminium

GT Aluminium 3.000mm Pitch Metric Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive. Use with GT2 or GT3 type belts.

  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
  • After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.
  • Use with GT2 or GT3 type belts.

Product Data

  • Number of Teeth : 54
  • Min. Usable Length (L) 200.0 mm
    (Equiv. 7.874 in.)
  • Pitch Diameter (PD) 51.60 mm
    (Equiv. 2.031 in.)
  • Outside Diameter (OD) 50.80 mm
  • Shank Diameter (D1) 19.00 mm
  • Shank Length (Sl) 19.0 mm
  • Material Aluminium
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Gates 54-3P-PS8A
  • A6A52M054GT20
  • 543PPS8A
