MMI-5443-H - Datasheet
MBA
Category Information

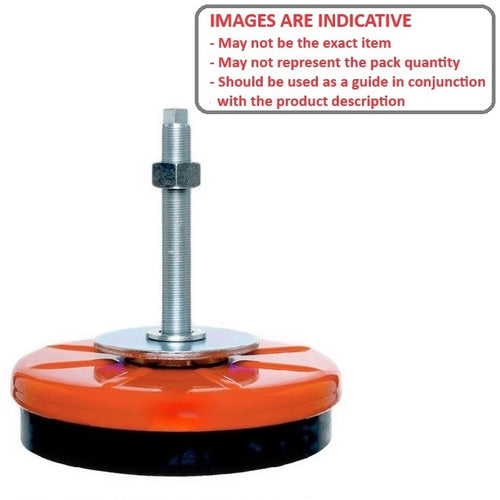

Mounts - Machinery Industrial - Heavy DutyHeavy Duty Machinery Industrial Mounts. High strength machined components. Rapid installation and leveling. 80% vibration reduction. Vertical and horizontal isolation.
- For milling mchines, presses, injection molding, packaging machines.
- Industrial machine mount designed with high strength construction for reduction of both shock and vibration.
- Prevents vibration from affecting other machines and protects mounted equipment from external vibration effects.
- Provides precision leveling with large support plate and meets OSHA standards by preventing machinery walking.
Product Data
- Load Capacity : 5443.1 Kg

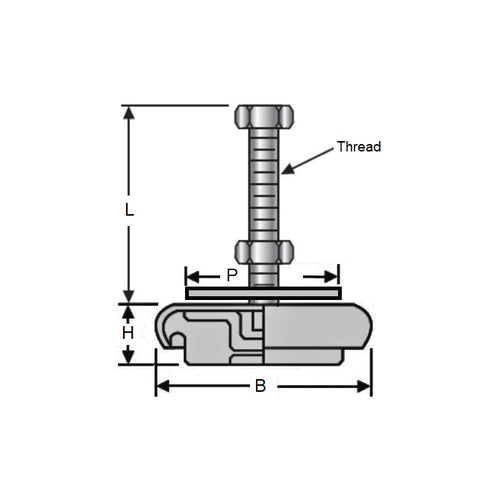

- Base Diameter
197.612
mm
(Equiv. 7.78 in.) - Plate Diameter
100.076
mm
(Equiv. 3.94 in.) - Height 55.880 mm
- Adjustment 15.240 mm
- Thread Size M20-1.5
- Thread Length 168.275 mm
- Non-Impact Machinery Load 5443.104 Kg
- 125 Strokes per Min Load 2494.756 Kg
- 180 Strokes per Min Load 1995.805 Kg
- 200 Strokes per Min Load 1496.854 Kg
- Material Rubber and Steel
Product Compliance and Data
Additional Resources
Cross References
- SX4
- SX-4
