MVIS-0544 - Datasheet
MBA
Category Information

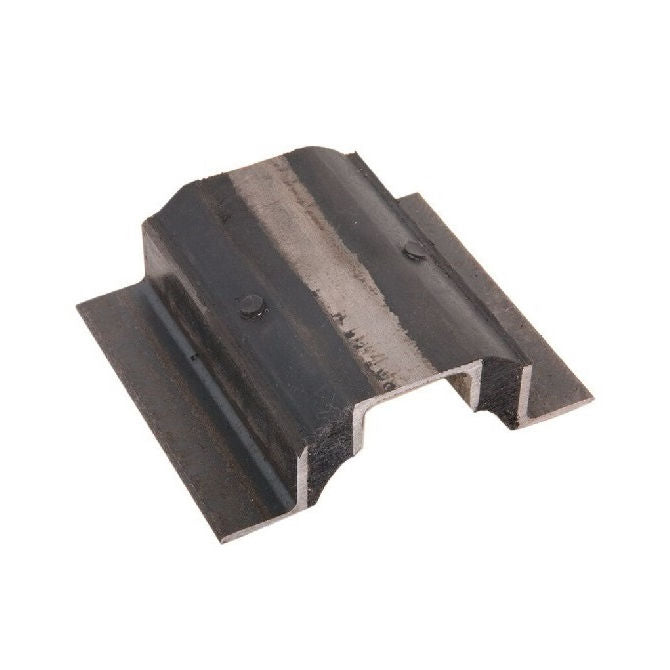

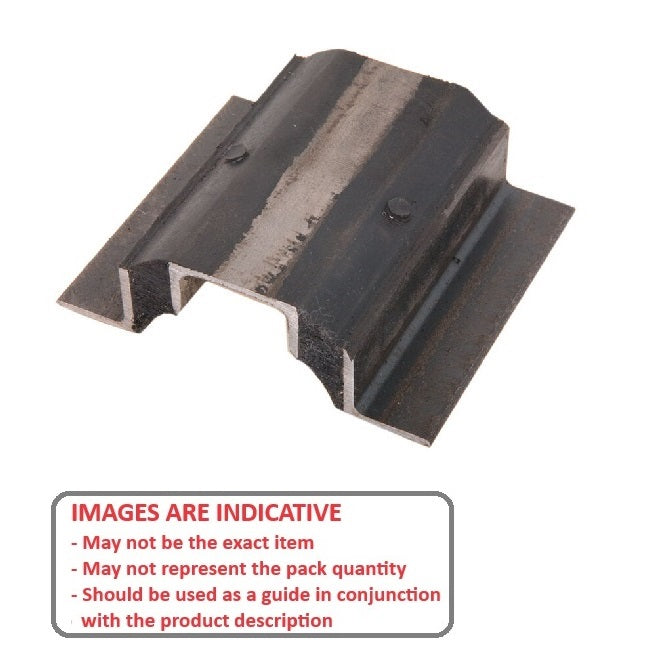

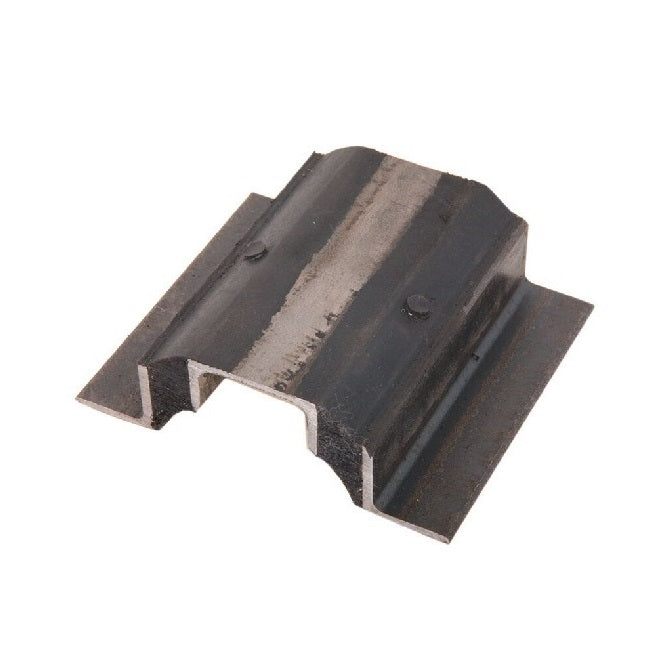

Mounts - Vibro Insulator StripsVibro Insulator Strips Mounts. Vibration dampening
- Continuous metal strip with 50 duro neoprene bonding elements
- Max recommended deflection is 4.8mm which occurs at around 9kg per 10mm
- Available in four lengths
Product Data
- Max Load : 544.311 kg

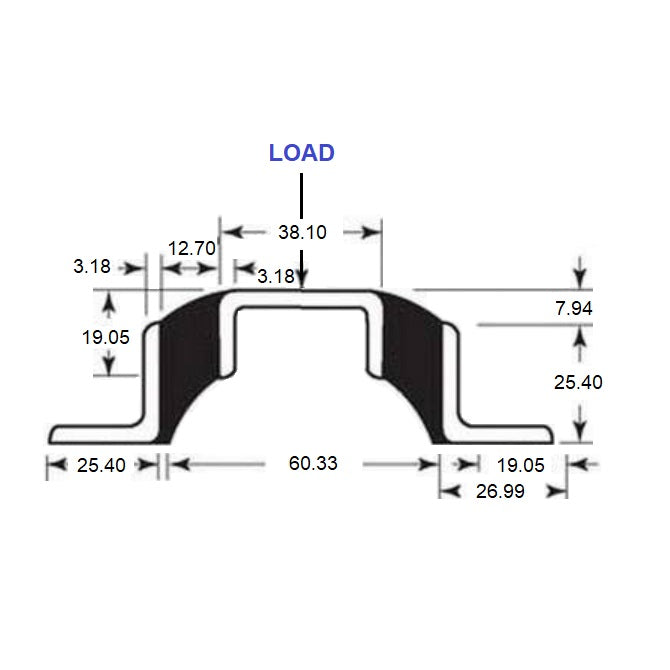

- Length
609.600
mm
(Equiv. 24 in.) - Width
114.300
mm
(Equiv. 4.5 in.) - Height 33.338 mm
- Info Steel bonded with 50 Duro Neoprene
- Info Max Rec. deflection 4.8mm at 9kg per 10mm
- Material Neoprene Rubber and Steel
Product Compliance and Data
Additional Resources
Cross References
- VM-124
- VM124
