B-XL-0054-0127-NFB - Datasheet
MBA
Category Information

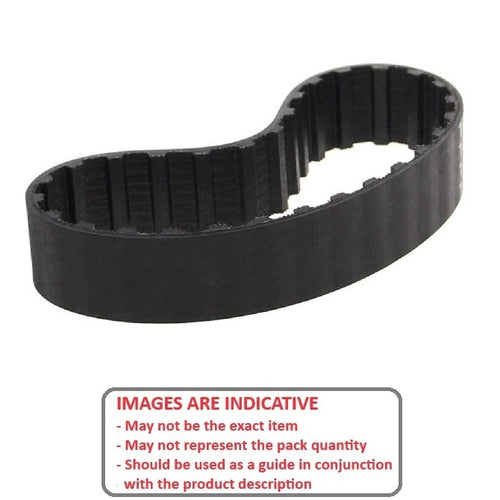

Belts - Inch Timing - 5.080mm Pitch XL - 12.7mm Wide12.7mm Wide 5.080mm Pitch XL Inch Timing Belts. Standard Series Timing Belts 5.08mm or 0.2 inch (1/5 inch) pitch. 12mm or 12.7mm width.
- Timing belts combined with timing pulleys, provide power transmission without slippage.
- Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
- Tooth Length (T) - 1.4mm
- Tooth Height (H) - 1.3mm
- Belt Height (W) - 2.3mm - Corner Radii ( r ) - 0.4mm
- Pitch (P) - 5.08mm (0.2 inch)
Product Data
- Number of Teeth : 54
- Length
274.32
mm
(Equiv. 10.8 in.) - Width
12.7
mm
(Equiv. 0.5 in.) - Reinforcement Fibreglass
- Appearance Black
- Material Nylon Covered Neoprene with Fibreglass Cords
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-TBN108XL050
- CTBN108XL050
