BTU0060-010-F-SS-SL - Datasheet
MBA
Category Information

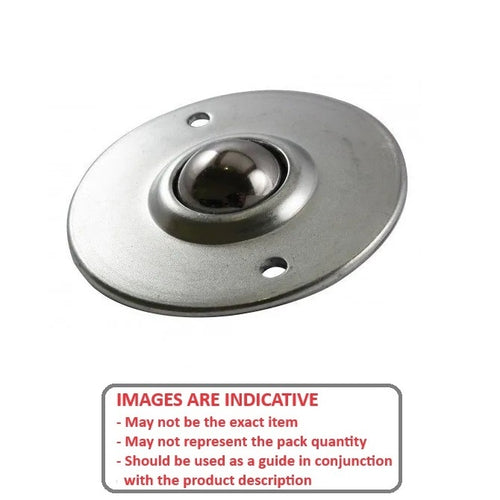

Ball Transfer Units - Flange Mount - Standard - Stainless - SlimSlim Stainless Standard Flange Mount Ball Transfer Units. This is the main category in this series
- Single ball bearing units for conveyor systems
- Max Load is applicable when used as a transfer, not as a castor
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Max Load : 54 kg

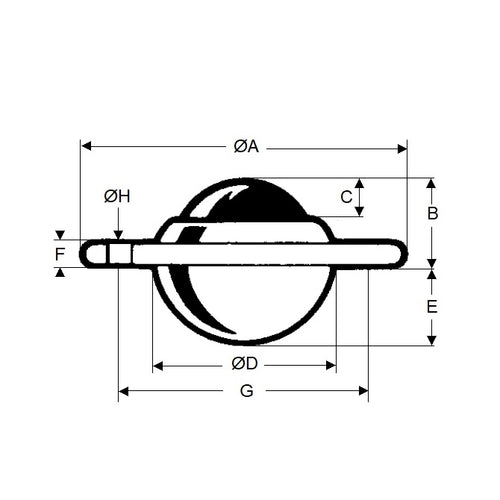

- Ball Height from Flange (B)
12.0
mm
+/- 0.2
(Equiv. 0.472 in.) - Body Diameter (D)
46.5
mm
+/- 0.065
(Equiv. 1.831 in.) - Overall Height (L) 36.1 mm
- Ball Diameter 31.7 mm
- Body Height (E) 19.9 mm
- Flange Diameter (A) 73.7 mm
- Flange Thickness (F) 4.2 mm
- Fixing Hole Size (H) M5 (5x0.8mm) mm
- Fixing Hole PCD (G) 58mm (2 Holes) mm
- Material Stainless Steel AISI 420C Rc 46-52
Product Compliance and Data
Additional Resources
Cross References
- SKF 32742-15
- SKF3274(Now3274215)
- SKF-3274-(Now-32742-15)
