RSN-212-S02 - Datasheet
MBA
Category Information

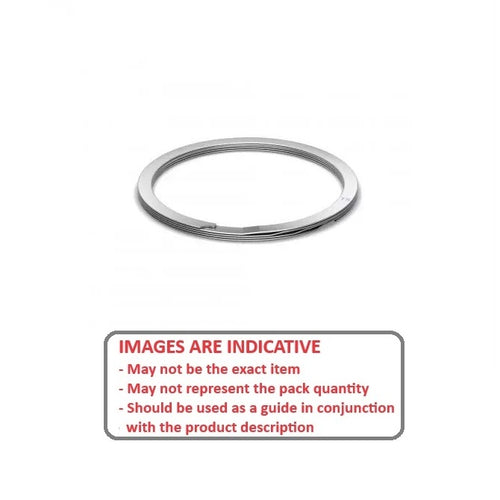

Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless SteelStainless Steel Heavy Duty Spiral Rings External Retaining Rings. AHE / WSM / AS3216 / RSN / MIL-R-27426A2 - Stainless Steel.
- An expanded range may be available on special order. Please enquire.
- Heavy duty design for use with NAS669-670 deep grooves in applications like double row and tapered roller bearings.
- Requires no tools for removal.
- Equivalent to Associated Spring: AHE, Smalley: WSM, Spirolox and Ramsey: RSN, Aerospace: AS3216, MIL-R-27426A2

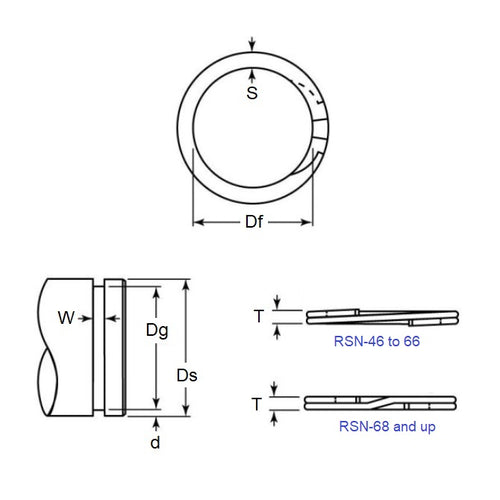

Product Data
- Shaft Diameter (Ds)
:
53.98
mm
(Equiv. 2.125 in.) - Clip Thickness (T)
1.99
mm
+/- 0.08
(Equiv. 0.078 in.) - Groove Dia. (Dg)
50.88
mm
(Equiv. 2.003 in.) - Approx. Loose Circlip ID (A) 50.20 mm + 0.00 / - 0.64
- Radial Wall (S) min/max 4.27 mm +/- 0.13
- Groove Width (W) 2.25 mm +/- 0.16
- Approx. Loose Clip OD 58.74 +/- 0.06
- Groove Depth (d) 1.55
- Material Stainless Steel 302/304 (Similar to A2, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- 91650A560
- Associated Spring AHE-212-S02
- Smalley WSM-212-S02
- WSM212S02
- AHE212S02
