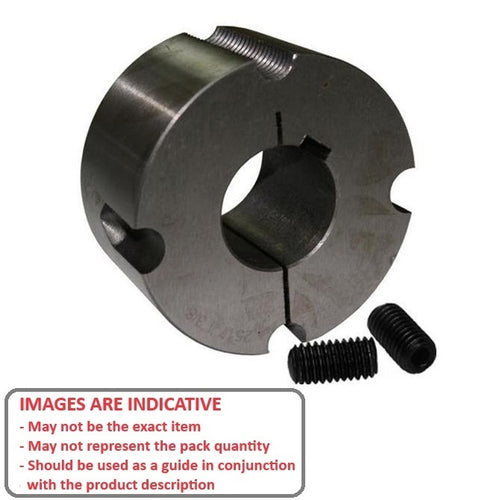

TLB-3020-0539 - Datasheet
MBA
Category Information
Bushings - TaperlockTaperlock Bushings. Taperlock Bushings for Pulleys and Sprockets.
- An expanded range may be available on special order. Please enquire.
- It is fastened tightly to the shaft via its tapered surface with the matching component.
- It provides flexibility between the main component to be suitable with many shaft sizes.
Product Data

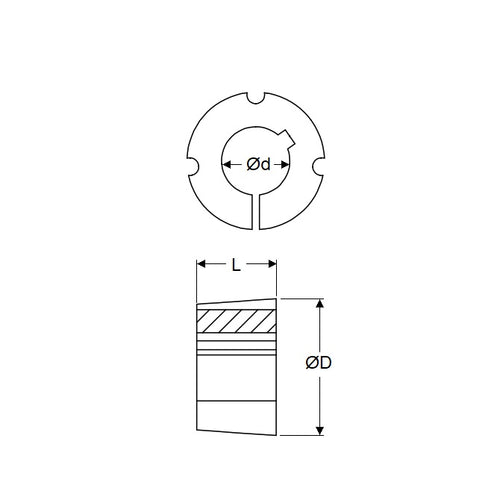

- Bore (d) : 53.975 mm
- Large End Dia. (D) 108.0 mm
- Length (L) 50.8 mm
- Taperlock Series 3020
- No of Screws 2
- Screw Size 5/8x1-1/4 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Gates® 3020x2-1-8
- 57095K337
- 3020x218
