Miniature Bearings Australia
ORB-05370-178-VBR75-034 - Datasheet
MBA
Category Information

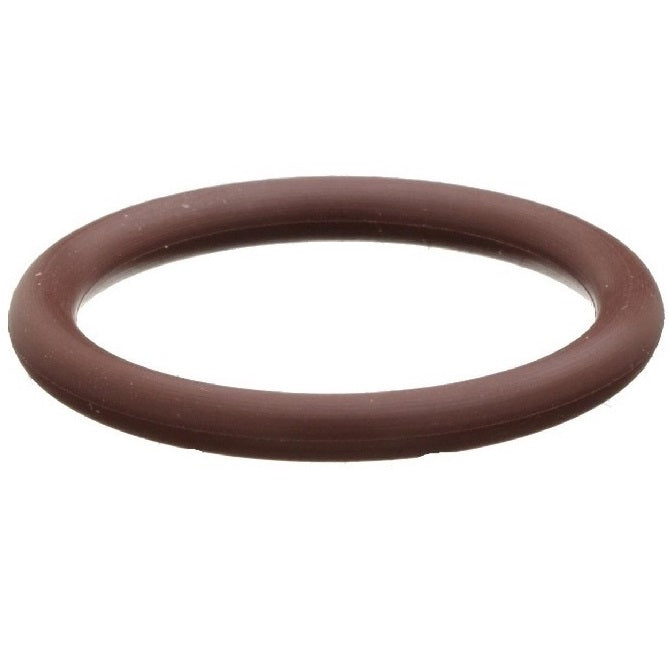

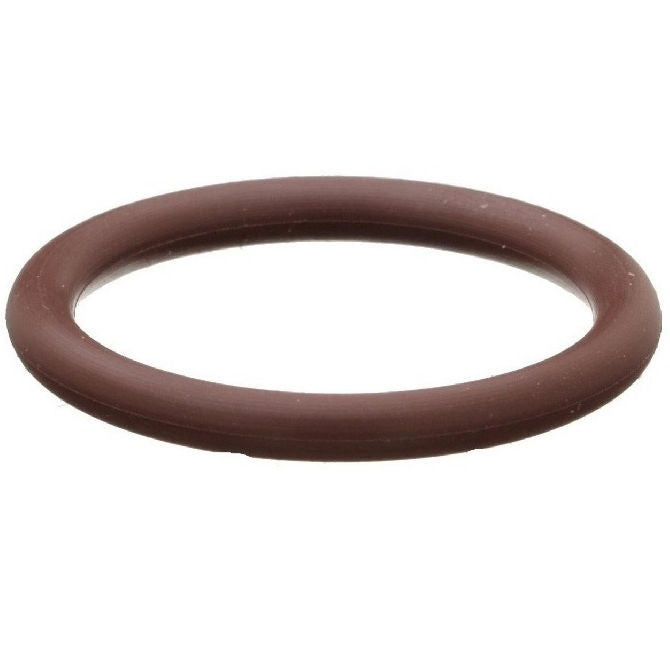

O-Rings - Fluoroelastomer BulkFluoroelastomer Bulk O-Rings. Viton(R) A for high temperature and chemical resistance.
- Viton® O-Ring suiteable for high temperature and chemical resistance.
- Mulitple packs may be supplied together in a singular package.
- Temperature Range: -20 Deg C to +200 Deg C.
- Suitable for synthetic and hydraulic fluids, strong acids, steam, many chemicals and many alkalis.
- Viton(R) is a registered trademark of Dupont Corporation.
- Viton is usually supplied brown, but black may be substituted when brown is unavailable.
- Bulk stock orders are the most economical way to purchase, but smaller packs are available for some sizes.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Inside Diameter (ID)
:
53.70
mm
(Equiv. 2.114 in.) - Section (t)
1.78
mm
(Equiv. 0.07 in.) - Colour Brown Fluoroelastomer
- Hardness Duro 75
- Material Fluoroelastomer
Product Compliance and Data
Additional Resources
Cross References
- OR05370178VBR75034
- OR-05370-178-VBR75-034
