OR-05357-353-VBR75-227 - Datasheet
MBA
Category Information

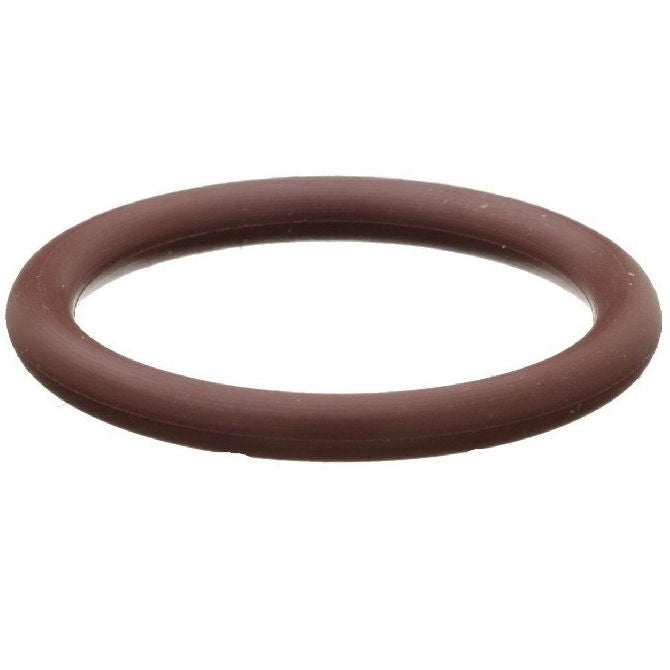

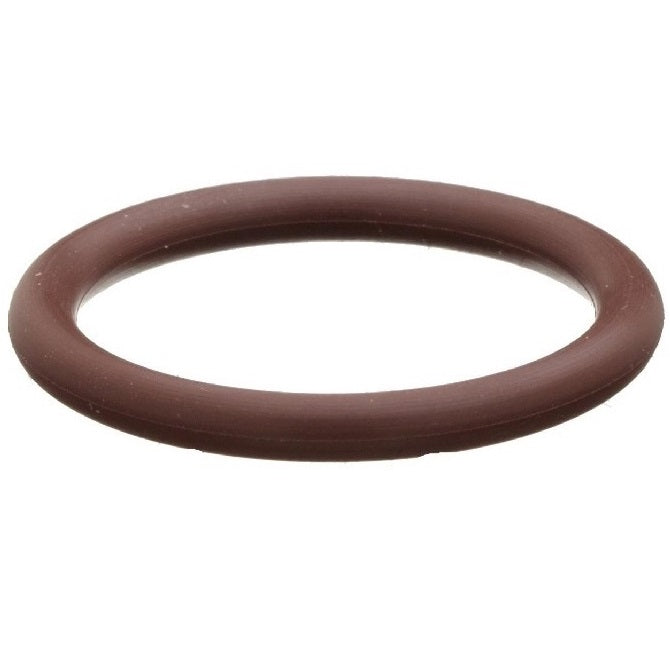

O-Rings - FluoroelastomerFluoroelastomer O-Rings. Viton(R) A for high temperature and chemical resistance.
- Temperature Range: -20 Deg C to +200 Deg C.
- Suitable for synthetic and hydraulic fluids, strong acids, steam, many chemicals and many alkalis.
- Viton(R) is a registered trademark of Dupont Corporation.
- Viton is usually supplied brown, but black may be substituted when brown is unavailable.
Product Data
- Inside Diameter (ID)
:
53.57
mm
(Equiv. 2.109 in.) - Section (t)
3.53
mm
(Equiv. 0.139 in.) - Colour Brown Fluoroelastomer
- Hardness Duro 75
- Material Fluoroelastomer
Product Compliance and Data
Additional Resources
Cross References
- 9464K98
- BS227V75
- BS227V75BROWN
- BS227-V75
- BS227-V75-BROWN
