P-030H-052-200C - Datasheet
MBA
Category Information

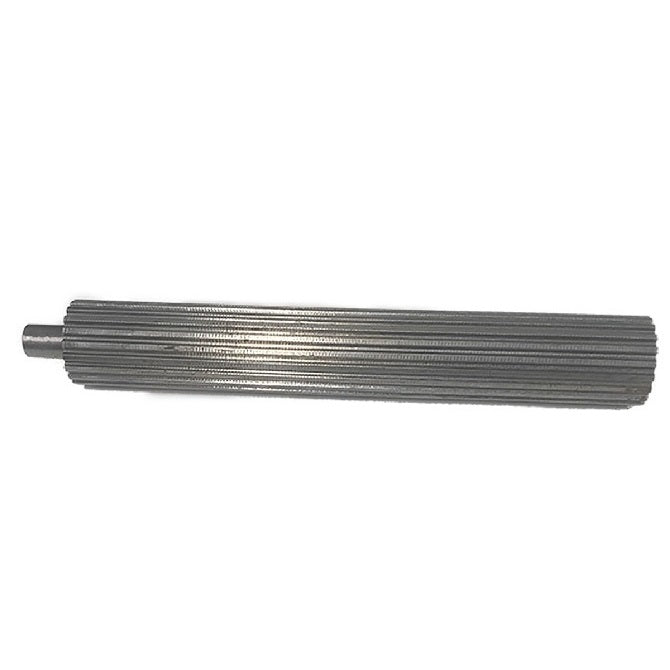

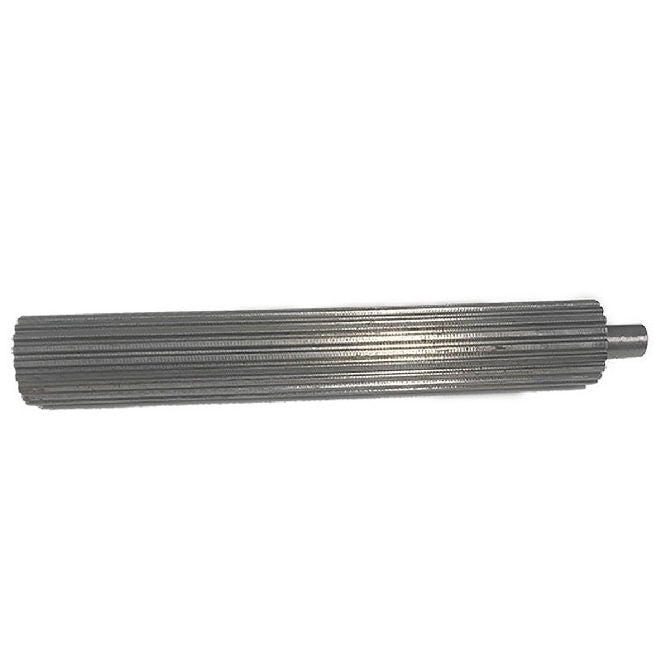

Pulleys - Metric Timing Stock - 3.000mm Pitch - HTD - Carbon SteelCarbon Steel HTD 3.000mm Pitch Metric Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
- After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.
Product Data
- Number of Teeth : 52
- Min. Usable Length (L)
200.0
mm
(Equiv. 7.874 in.) - Pitch Diameter (PD)
49.70
mm
(Equiv. 1.957 in.) - Outside Diameter (OD) 48.89 mm
- Shank Diameter (D1) 19.00 mm
- Shank Length (Sl) 19.0 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Gates 52-3M-PS8S
- 523MPS8S
- A6C22M052TM20
