WRI-0520-LS - Datasheet
MBA
Category Information

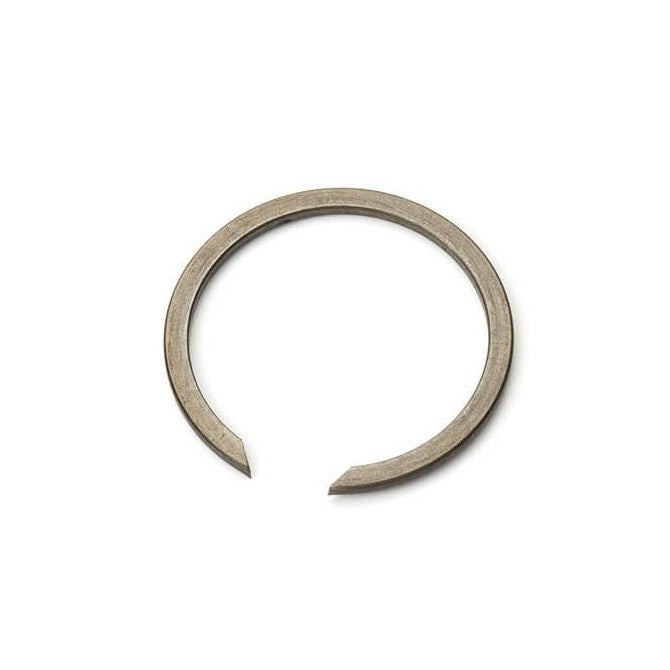

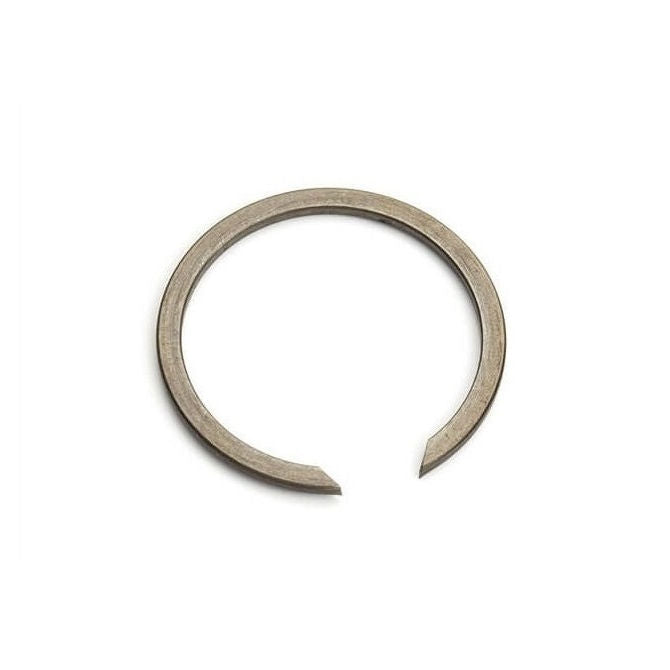

Retaining Rings - Internal - Snap Rings - Basic Carbon SteelBasic Carbon Steel Snap Rings Internal Retaining Rings. M2300 / SB / ESB Snaprings. Like an internal circlip without the lugs.
- An expanded range may be available on special order. Please enquire.
- Applications include gear systems, securing needle bearings and to act as spacers.
- Used on the inside bore diameter of a housing or similar
Product Data
- Housing Bore (B)
:
52.00
mm
(Equiv. 2.047 in.) - Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.) - Groove Dia. (Dg)
53.50
mm
+ 0.19 / - 0.00
(Equiv. 2.106 in.) - Approx. Loose Circlip OD (Dr) 54.30 mm
- Section (Rd) 2.30 mm + 0 / - 0.10
- Groove Width (W) 1.60 mm
- Approx. Loose Clip ID 49.7
- Section Profile Rectangular with Square Edge
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor DSB-052
- Seeger SB52
- Seeger SB52A501-S
- ExaktKey SBM0520
- NoCor SBM0520
- Springmaster SBM0520
- XOSpring SBM0520
- DSB052
- WRI0520SQ
- SB52A501S
- M2300-0520APP
- M23000520APP
